A95U | TRANSFORMER; LOW Z, MALE XLR TO HIGH Z MC1M CONNECTOR WITH MATING 1/4" PHONE PLUG/JACK
A95U
TRANSFORMER; LOW Z, MALE XLR TO HIGH Z MC1M CONNECTOR WITH MATING 1/4" PHONE PLUG/JACK
A95U
TRANSFORMER; LOW Z, MALE XLR TO HIGH Z MC1M CONNECTOR WITH MATING 1/4" PHONE PLUG/JACK
- UM : EA
- Estimated Weight: 0.1
Discontinued
Description:

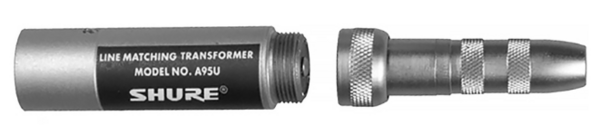

The Shure A95U is a reversible transformer that matches low- or high-impedance microphones to high- or low-impedance inputs. The transformer permits use of very long microphone cables with high-impedance microphones. However, when connecting a high-impedance microphone, limit the cable length between the microphone and the transformer to 4.6 m (15 foot). The cable from the transformer to the low-impedance input can be any desired length.
Features:
· The transformer prevents high-frequency loss, level loss, and pickup of noise and hum. The A95U comes furnished with a Male XLR connector on the low-impedance end, with a 1/4 inch phone plug and phone jack adapter on the high-impedance end.
· Allows a high impedance microphone to be connected to balanced low-impedance inputs.
