AC115S-WH | 15" SUBWOOFER WITH 75MM (3 IN) VOICE COIL. (PRICED AS EACH)

  • MAP: $1,400.00 / EA
  • List Price: $1,400.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

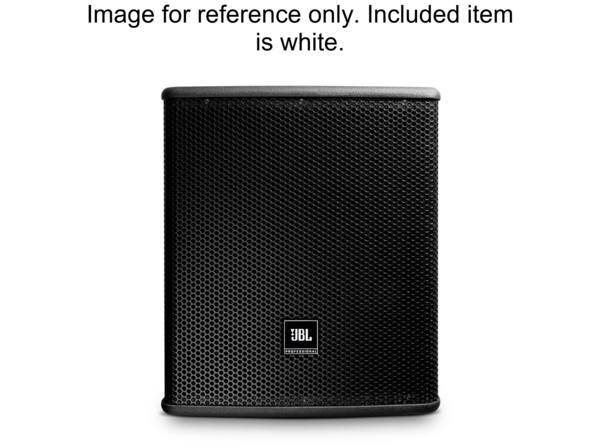

15" SUBWOOFER WITH 75MM (3 IN) VOICE COIL. (PRICED AS EACH)
Click image to enlarge

AC115S-WH
15" SUBWOOFER WITH 75MM (3 IN) VOICE COIL. (PRICED AS EACH)

  • UM : EA

AC115S-WH is a 15-inch (385 mm) subwoofer system featuring a single low-frequency driver housed in a vented, front-loaded rectangular cabinet. The enclosure includes M10 threaded suspension points to facilitate mounting configurations. This unit is part of the JBL AE Application Engineered Series designed for fixed installation applications.

  • High power driver for low frequency
  • High sensitivity with low power compression
  • Large port for high output and low-frequency reinforcement
  • Multiple attachment points for flexibility
  • Robust 18 mm multi-ply hardwood with textured black finish
Frequency Range 32 Hz - 250 Hz
Frequency Response 40 Hz - 250 Hz
System Sensitivity 94 dB (1W @ 1m)
Nominal Impedance 8ohms
Maximum SPL 120 dB (126 dB peak)
System Power Rating 500W (2000W peak), 2 hrs (AES rated), 400W/800W/1600W (Continuous/Program/Peak) (IEC rated)
LF Driver 1 x 15" woofer, 385 mm driver with 75 mm voice-coil
Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure 18 mm multi-ply hardwood plywood
Baffle Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish Textured white paint finish
Suspension Attachment 12 x M10 threaded suspension points
Nominal LF Driver Impedance 8ohms
