AC118S | 18" SUBWOOFER WITH 75MM (3 IN) VOICE COIL. (PRICED AS EACH)

  • MAP: $1,620.00 / EA
  • List Price: $1,620.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
18" SUBWOOFER WITH 75MM (3 IN) VOICE COIL. (PRICED AS EACH)
18" SUBWOOFER WITH 75MM (3 IN) VOICE COIL. (PRICED AS EACH)
18" SUBWOOFER WITH 75MM (3 IN) VOICE COIL. (PRICED AS EACH)
Click image to enlarge
18" SUBWOOFER WITH 75MM (3 IN) VOICE COIL. (PRICED AS EACH)
18" SUBWOOFER WITH 75MM (3 IN) VOICE COIL. (PRICED AS EACH)
18" SUBWOOFER WITH 75MM (3 IN) VOICE COIL. (PRICED AS EACH)

AC118S
18" SUBWOOFER WITH 75MM (3 IN) VOICE COIL. (PRICED AS EACH)

  • UM : EA

18-inch Subwoofer

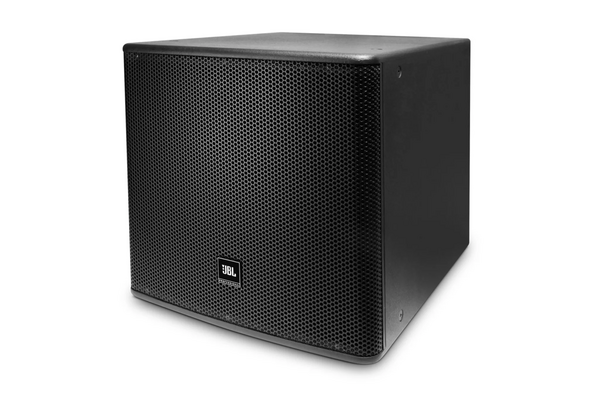

AC118S is a high power subwoofer system comprised of one 459 mm (18 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility. As a part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC118S provides a natural low-frequency sound quality.



Features:

  • High power and long excursion driver for lower frequency reproduction.
  • High sensitivity with lower power compression
  • Large port for high output and low-frequency reinforcement
  • Multiple Attachment Points for Ultimate Flexibility
  • Robust 18 mm multiply hardwood with textured black finish
  • Performing Spaces
  • Clubs & Bars
  • Houses of Worship
  • Multi Media Spaces
  • Retail & Hospitality Spaces
  • Presentation Suites
  • Educational Facilities
Frequency Range (-10dB) 32 Hz - 250 Hz
Frequency Response (±3 dB) 40 Hz - 250 Hz
System Sensitivity (1w @ 1m) 95 dB
Nominal Impedance 8 ohms
Maximum SPL (1m) 122 dB (128 dB peak)
System Power Rating 600W (2400W peak), 2 hrs (AES rated)450 W/900 W/1800 W (Continuous/Program/Peak) (IEC rated)

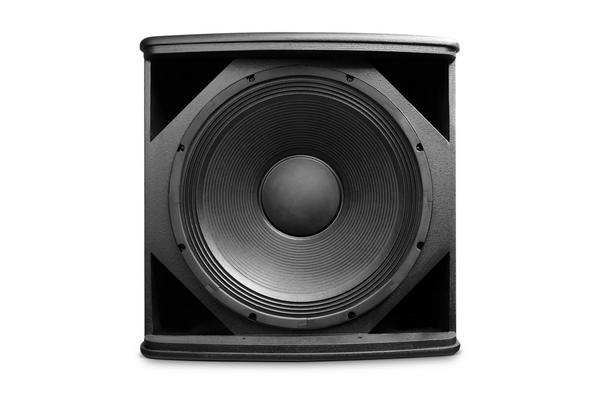

LF Driver 1x 18″ woofer (P/N: 5021800), 457.2 mm (18 in) driver with 75 mm (3 in) voice-coil
Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure 18 mm multi-ply hardwood plywood

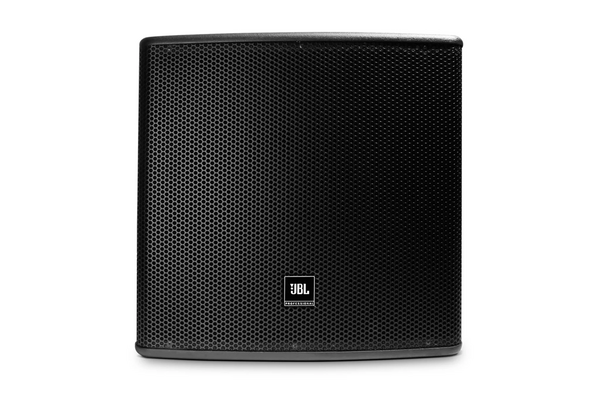

Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension Attachment 12 x M10 threaded suspension points
Dimensions (H x W x D) 548 mm x 561 mm x 720 mm 21.5 in x 22.0 in x 28.3 in
Net Weight (each) 32.3 kg (71.2 lbs)
Nominal LF Driver Impedance 8 ohms
