18" SUBWOOFER WITH 75MM (3 IN) VOICE COIL. (PRICED AS EACH)
Click image to enlarge

AC118S-WH
18" SUBWOOFER WITH 75MM (3 IN) VOICE COIL. (PRICED AS EACH)

  • UM : EA

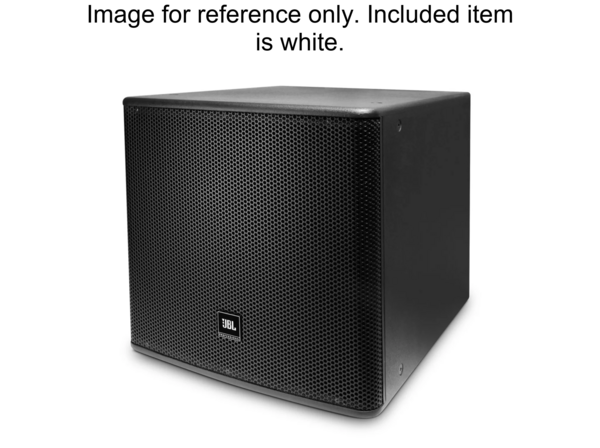

AC118S-WH is an 18-inch subwoofer system featuring a single 459 mm (18 in) low-frequency driver configured in a vented, front-loaded enclosure designed to extend bandwidth. The rectangular cabinet includes M10 threaded suspension points for flexible mounting options. This subwoofer is part of JBL’s AE Application Engineered Series intended for fixed installation applications.

  • High power, long excursion driver for low frequency
  • High sensitivity, low power compression
  • Large port for high output and bass reinforcement
  • Multiple attachment points for flexibility
  • Robust 18 mm plywood with textured black finish
Frequency Range 32 Hz - 250 Hz
Frequency Response 40 Hz - 250 Hz
System Sensitivity 95 dB (1W @ 1m)
Nominal Impedance 8ohms
Maximum SPL 122 dB (128 dB peak)
System Power Rating 600W (2400W peak), 2 hrs (AES rated), 450W/900W/1800W (Continuous/Program/Peak) (IEC rated)
LF Driver 1x 18" woofer with 75 mm (3 in) voice coil
Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure 18 mm multi-ply hardwood plywood
Baffle Powder-coated 1.5mm perforated steel with acoustically transparent black foam backing
Finish Textured white paint
Suspension Attachment 12 x M10 threaded suspension points
Nominal LF Driver Impedance 8ohms
