AC15 | ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 5.25" LF. 90° X 90° COVERAGE, PASSIVE. SUSPENSION

  • MAP: $580.00 / EA
  • List Price: $580.00 / EA
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 2
  • Case Quantity: 2
  • Sign In or Submit RFQ for accurate lead times
ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 5.25" LF. 90° X 90° COVERAGE, PASSIVE. SUSPENSION
ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 5.25" LF. 90° X 90° COVERAGE, PASSIVE. SUSPENSION
Click image to enlarge
ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 5.25" LF. 90° X 90° COVERAGE, PASSIVE. SUSPENSION
ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 5.25" LF. 90° X 90° COVERAGE, PASSIVE. SUSPENSION

AC15
ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 5.25" LF. 90° X 90° COVERAGE, PASSIVE. SUSPENSION

  • UM : EA

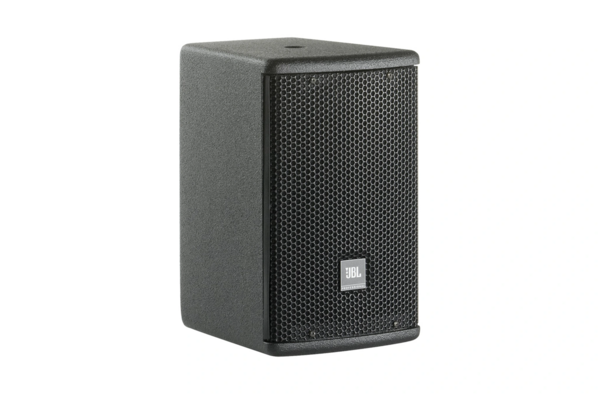

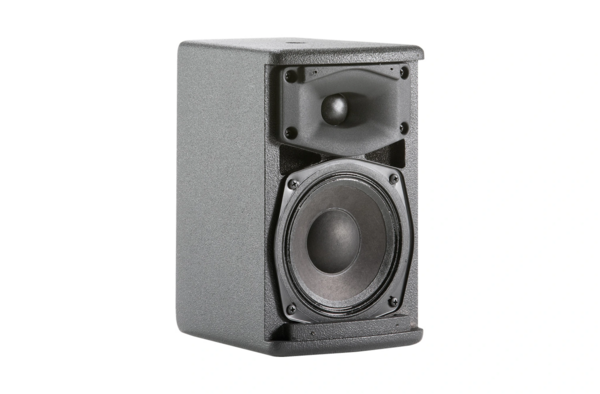

The AC15 is a 2-way loudspeaker featuring a 5.25-inch low-frequency driver and a 1-inch dome tweeter. It is part of the AE Compact series designed for compact, high-output applications. The enclosure supports high output levels within a compact form factor. The speaker does not include rotatable waveguides and offers a fixed dispersion pattern corresponding to the 1-inch dome tweeter design.

  • 1" dome tweeter with 90° x 90° coverage
  • 135 mm (5.25 in) low frequency transducer
  • Ultra compact enclosure
  • 300W program power
  • Dual Neutrik NL4 connectors plus screw terminal
  • Attachment points for optional U-bracket
Frequency Range 80 Hz - 20 kHz
Frequency Response 90 Hz - 18 kHz
System Power Rating 225 W (AES), 150 W / 300 W / 600 W (Continuous/Program/Peak IEC)
Impedance 16ohms
Coverage Pattern 90° x 90°
Crossover Modes Passive
Maximum SPL (1m) 108 dB
System Sensitivity (1W @ 1m) 86 dB SPL
Nominal Section Impedances 16ohms
LF Driver JBL 225J, 135 mm with 38 mm edge wound voice coil
Nominal LF Driver Impedance 16ohms
HF Driver JBL 201J, 25 mm voice coil dome tweeter
Enclosure 12 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 4 x M8 points; 2 x M6 points for mounting
Environmental Mil-Std 810; IPx3 per IEC529
