AC15-WH | ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 5.25" LF. 90° X 90° COVERAGE, PASSIVE. SUSPENSION
AC15-WH
ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 5.25" LF. 90° X 90° COVERAGE, PASSIVE. SUSPENSION
Click image to enlarge
AC15-WH
ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 5.25" LF. 90° X 90° COVERAGE, PASSIVE. SUSPENSION
- UM : EA

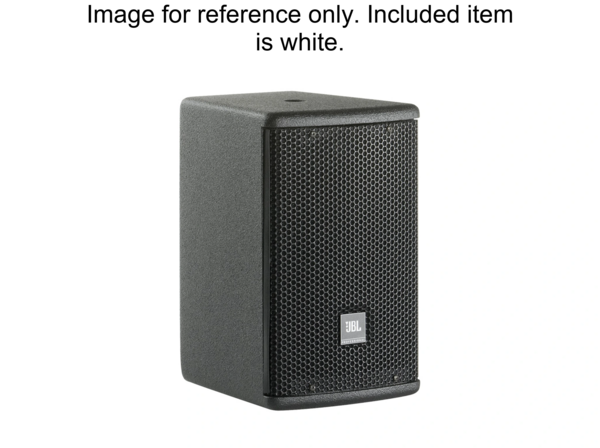

The AC15-WH is a 2-way loudspeaker featuring a 5.25-inch low-frequency driver and a 1-inch dome tweeter. It is part of the AE Compact series designed for compact, high-output applications. The enclosure supports high output levels within a compact form factor. The speaker does not include rotatable waveguides and offers a fixed dispersion pattern corresponding to the 1-inch dome tweeter design.
- 1-inch dome tweeter with 90° x 90° coverage
- 135 mm (5.25 in) low-frequency transducer
- Ultra compact enclosure
- 300W program power
- Dual Neutrik NL4 connectors plus screw terminal
- Attachment points for optional U-bracket
| Frequency Range | 80 Hz - 20 kHz |
|---|---|
| Frequency Response | 90 Hz - 18 kHz |
| System Power Rating | 225 W (AES), 150 W / 300 W / 600 W (Continuous/Program/Peak IEC) |
| Impedance | 16ohms |
| Coverage Pattern | 90° x 90° |
| Crossover Modes | Passive |
| Maximum SPL (1m) | 108 dB |
| System Sensitivity (1w @ 1m) | 86 dB SPL |
| Nominal Section Impedances | 16ohms |
| LF Driver | 1 x JBL 225J, 135 mm SFG driver with 38 mm edge wound voice coil |
| Nominal LF Driver Impedance | 16ohms |
| HF Driver | 1 x JBL 201J, 25 mm voice coil dome tweeter |
| Enclosure | 12 mm exterior grade multi-ply hardwood plywood |
| Suspension Attachment | 4 x M8 points; 1 top, 1 bottom, 2 rear; 2 x M6 bottom for OmniMount or MultiMount |
| Environmental | Mil-Std 810; IPx3 per IEC529 |
×
