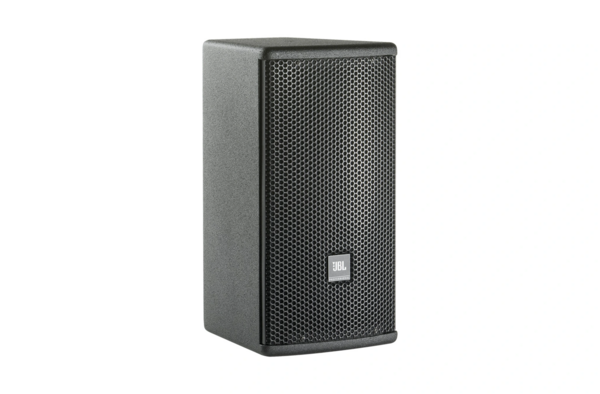

AC16 | ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 6.5" LF. 90° X 90° COVERAGE, PASSIVE. PRICED AS EACH/BLACK

  • MAP: $1,170.00 / EA
  • List Price: $1,170.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 6.5" LF.  90° X 90° COVERAGE, PASSIVE. PRICED AS EACH/BLACK
ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 6.5" LF.  90° X 90° COVERAGE, PASSIVE. PRICED AS EACH/BLACK
Click image to enlarge
ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 6.5" LF.  90° X 90° COVERAGE, PASSIVE. PRICED AS EACH/BLACK
ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 6.5" LF.  90° X 90° COVERAGE, PASSIVE. PRICED AS EACH/BLACK

AC16
ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 6.5" LF. 90° X 90° COVERAGE, PASSIVE. PRICED AS EACH/BLACK

  • UM : EA
  • Estimated Weight: 18.0

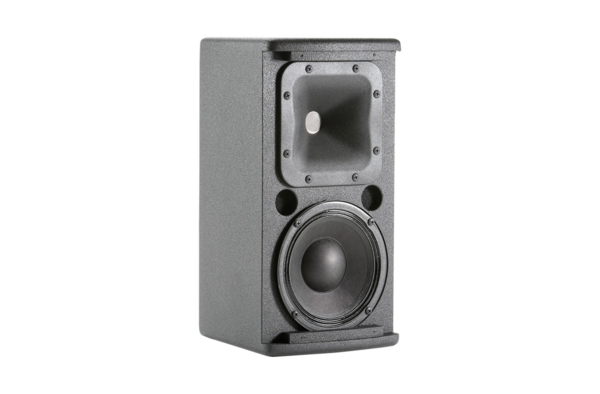

The AC16 is a 2-way loudspeaker system featuring a 6-inch low-frequency driver and a 1-inch exit compression driver for high-frequency reproduction. The design includes JBL's Progressive Transition™ Rotatable Waveguide, which allows selection between two coverage patterns: 90° x 50° or 120° x 60°. This model is part of the AE Compact series and supports applications requiring compact form factor and configurable dispersion characteristics.

  • 1” exit compression driver with 90° x 90° coverage
  • 165 mm (6.5 in) low frequency transducer
  • Ultra compact enclosure
  • 320W program power
  • Dual Neutrik NL4 connectors plus screw terminal
  • Attachment points for optional U-bracket, OmniMount type bracket, and stand mount accessory
Frequency Range 55 Hz - 20 kHz
Frequency Response 65 Hz - 18 kHz
System Power Rating 250 W (AES), 160 W / 320 W / 640 W (Continuous/Program/Peak, IEC)
Nominal Impedance 16ohms
Coverage Pattern 90° x 90°
Crossover Modes Passive
Maximum SPL (1m) 110 dB
System Sensitivity (1W @ 1m) 90 dB SPL
LF Driver 1 x JBL 226J, 165 mm SFG driver with 50 mm edge wound voice coil
Nominal LF Driver Impedance 16ohms
HF Driver 1 x 2414H 25 mm exit compression driver, 25 mm voice coil
Enclosure Multi-ply hardwood plywood
Suspension Attachment 5 x M8 points; 4 x M6 rear for mounts
Environmental Mil-Std 810; IPx3 per IEC529
