AC16-WRC | ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 6.5" LF. 90° X 90° COVERAGE, PASSIVE. COMPACT PT

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 6.5" LF. 90° X 90° COVERAGE, PASSIVE. COMPACT PT

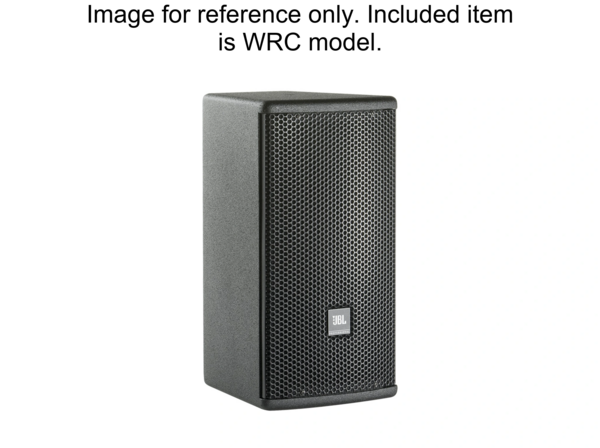

Click image to enlarge

AC16-WRC
ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 1 X 6.5" LF. 90° X 90° COVERAGE, PASSIVE. COMPACT PT

  • UM : EA
  • Estimated Weight: 23.0

AC16-WRC is a compact 2-way loudspeaker featuring a 6-inch low-frequency driver and a 1-inch exit compression driver. It is part of the AE Compact series, designed for flexible deployment in audio systems. The loudspeaker provides sonic clarity and detailed sound reproduction through its compression driver. The AC16-WRC does not include rotatable waveguides; coverage pattern details are not specified for this model.

Features:

  • 1” exit compression driver with 90° x 90° coverage
  • 165 mm (6.5 in) low-frequency transducer
  • ultra-compact enclosure
  • 320W program power
  • dual Neutrik NL4 connectors plus screw terminal
  • attachment points for optional U-bracket, OmniMount type bracket, and stand mount accessory
Frequency Range (-10 dB) 55 Hz - 20 kHz
Frequency Response (±3 dB) 65 Hz - 18 kHz
System Power Rating 250 W (AES), 160 W / 320 W / 640 W (Continuous/Program/Peak IEC rated)
Nominal Impedance 16ohms
Coverage Pattern 90° x 90°
Crossover Modes Passive
Maximum SPL (1m) 110 dB
System Sensitivity (1W @ 1m) 90 dB SPL
LF Driver 1 x JBL 226J, 165 mm SFG driver with 50 mm edge wound voice coil
Nominal LF Driver Impedance 16ohms
HF Driver 1 x 2414H 25 mm exit compression driver, 25 mm voice coil
Enclosure Exterior grade multi-ply hardwood plywood
Suspension Attachment 5 x M8 points; 1 top, 3 bottom, 1 rear; 4 x M6 rear for OmniMount 30.0 and MultiMount MM-022-BT, MM-024-BT, MM-020-CM
Environmental Mil-Std 810; IPx3 per IEC529; use WRC or WRX for higher ratings
