AC18/26
COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 120° X 60° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE
- UM : EA

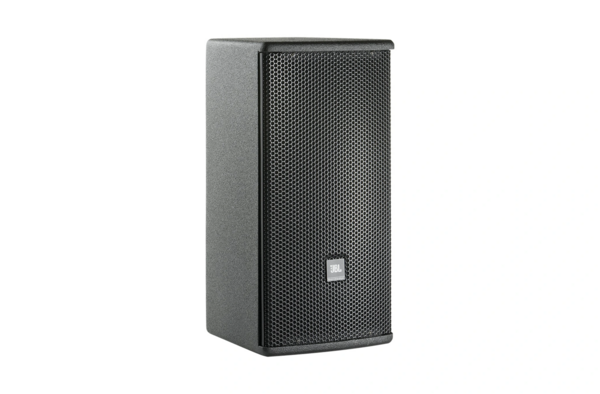

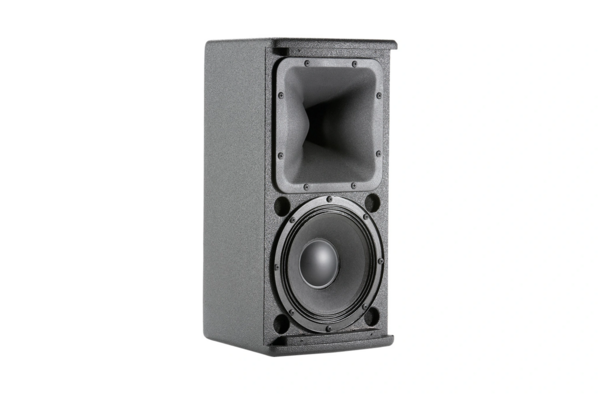

The AC18/26 is a compact 8-inch 2-way loudspeaker featuring a 1-inch exit compression driver. It includes JBL's Progressive Transition Rotatable Waveguides, allowing selectable coverage patterns of 90° x 50° or 120° x 60°.
- 1” exit compression driver
- 205 mm (8 in) LF transducer
- compact enclosure
- 500W program power
- dual Neutrik NL4 connectors plus screw terminal
- FIR tuning for optimized frequency and phase response
- coverage consistency
- attachment points for optional U-bracket, OmniMount type bracket, and stand mount accessory
| Frequency Range | 52 Hz - 20 kHz |
|---|---|
| Frequency Response | 63 Hz – 19 kHz |
| System Power Rating | 375 W AES, 250 W Continuous, 500 W Program, 1000 W Peak IEC |
| Impedance | 8ohms |
| Coverage Pattern | 120° x 60° (AC18/26), 90° x 50° (AC18/95) |
| Crossover Modes | Passive |
| Maximum SPL (1m) | 116 dB |
| System Sensitivity (1W @ 1m) | 92 dB SPL |
| LF Driver | JBL 228H, 205 mm SFG driver with 64 mm edge wound voice coil |
| Nominal LF Driver Impedance | 8ohms |
| HF Driver | 2408H-1, 25 mm exit compression driver with 38 mm voice coil |
| Enclosure | 12 mm and 15 mm exterior grade multi-ply hardwood plywood |
| Suspension Attachment | 6 x M8 points (1 top, 3 bottom, 2 rear); 4 x M6 rear for OmniMount 30.0 and MultiMount MM-022-BT, MM-024-BT, MM-020-CM |
| Environmental | Mil-Std 810; IPx3 per IEC529 |
×
×
