AC18/26-WH | COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 120° X 60° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE
AC18/26-WH
COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 120° X 60° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

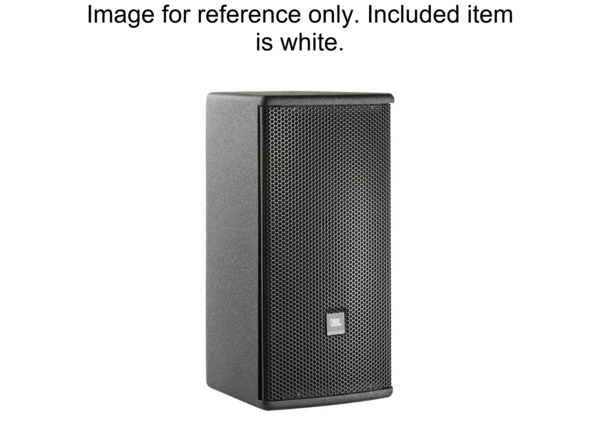

Click image to enlarge
AC18/26-WH
COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 120° X 60° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE
- UM : EA
- Estimated Weight: 29.0
The AC18/26-WH is a compact 8-inch 2-way loudspeaker featuring a 1-inch exit compression driver. It includes JBL's Progressive Transition Rotatable Waveguides, allowing selectable coverage patterns of 90° x 50° or 120° x 60°.
- 1” Exit Compression Driver
- PT Waveguide
- 205 mm (8 in) LF Transducer
- Compact Enclosure
- 500W Program Power
- Dual Neutrik NL4 Connectors and Screw Terminal
- FIR Tuning for Optimized Frequency and Phase Response
- Consistent Coverage
- Attachment Points for U-Bracket, OmniMount Bracket, and Stand Mount
| Frequency Range (-10dB) | 52 Hz - 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 63 Hz – 19 kHz |
| System Power Rating | 375 W (AES rated), 250 W / 500 W / 1000 W (Continuous/Program/Peak) (IEC rated) |
| Impedance | 8ohms |
| Coverage Pattern | 120° x 60° / 90° x 50° |
| Crossover Modes | Passive |
| Maximum SPL (1m) | 116 dB |
| System Sensitivity (1w @ 1m) | 92 dB SPL |
| LF Driver | 1 x JBL 228H, 8 in SFG driver with 2.5 in edge wound voice coil |
| Nominal LF Driver Impedance | 8ohms |
| HF Driver | 1 x 2408H-1 1 in exit compression driver, 1.5 in voice coil |
| Enclosure | 12 mm and 15 mm exterior grade multi-ply hardwood plywood |
| Suspension Attachment | 6 x M8 points, 4 x M6 rear for mounts |
| Environmental | Mil-Std 810; IPx3 per IEC529 |
