AC18/26-WRC | COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 120° X 60° COVERAGE, PASSIVE. COMPACT PT

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 120° X 60° COVERAGE, PASSIVE. COMPACT PT

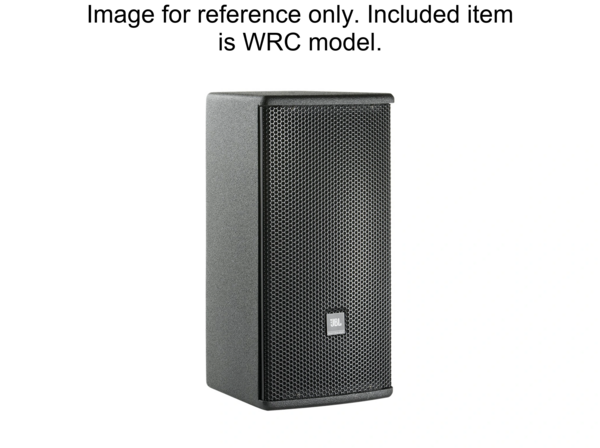

Click image to enlarge

AC18/26-WRC
COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 120° X 60° COVERAGE, PASSIVE. COMPACT PT

  • UM : EA
  • Estimated Weight: 28.4

AC18/26-WRC is a compact 8-inch, 2-way loudspeaker system featuring a rotatable horn with selectable coverage patterns of 120° x 60° or 90° x 50°. It includes a 1" exit compression driver and JBL's Progressive Transition Rotatable Waveguide technology, allowing adjustable directivity. This model is part of the AE Compact series, designed for high output and fidelity in a compact form factor.

Features:

  • 1” Exit Compression Driver
  • Coverage PT Waveguide
  • 205 mm (8 in) LF transducer
  • Compact enclosure
  • 500W Program power
  • Dual Neutrik NL4 connectors and screw terminal
  • FIR Tuning for optimized frequency and phase response
  • Coverage consistency
  • Attachment points for U-bracket, OmniMount bracket, and stand mount accessory
Frequency Range 52 Hz - 20 kHz
Frequency Response 63 Hz – 19 kHz
System Power Rating 375 W (AES rated), 250 W / 500 W / 1000 W (Continuous/Program/Peak) (IEC rated)
Impedance 8ohms
Coverage Pattern 120° x 60°, 90° x 50°
Crossover Modes Passive
Maximum SPL (1m) 116 dB
System Sensitivity (1w @ 1m) 92 dB SPL
LF Driver JBL 228H, 205 mm (8 in) SFG driver with 64 mm (2.5 in) edge wound voice coil
Nominal LF Driver Impedance 8ohms
HF Driver 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 6 x M8 points (1 top, 3 bottom, 2 rear), 4 x M6 rear for OmniMount and MultiMount
Environmental Mil-Std 810; IPx3 per IEC529
