AC18/95 | COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

  • MAP: $1,430.00 / EA
  • List Price: $1,430.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE
COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE
Click image to enlarge
COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE
COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

AC18/95
COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

  • UM : EA

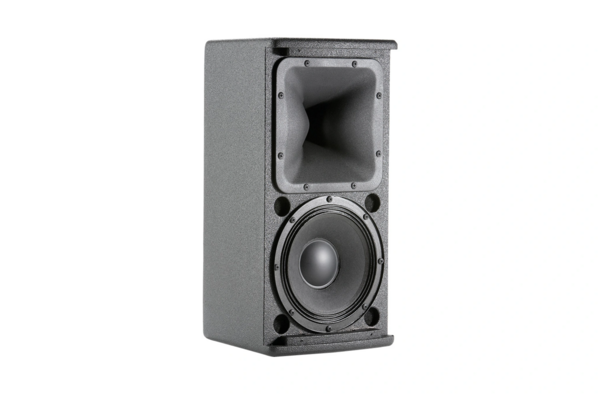

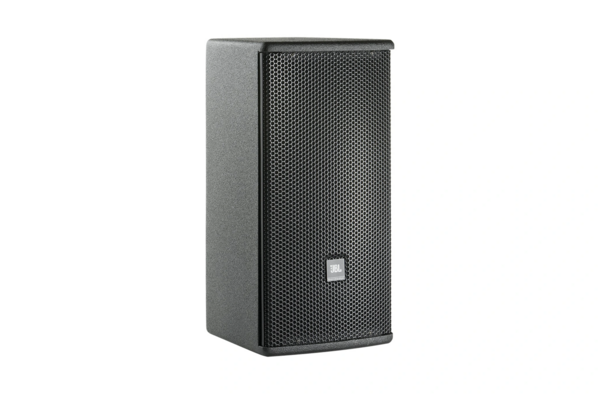

AC18/95 is a compact 8-inch, 2-way loudspeaker featuring a rotatable horn with selectable coverage patterns of 90° x 50° or 120° x 60°. It includes a 1-inch exit compression driver and JBL's Progressive Transition rotatable waveguide technology. The loudspeaker is designed for flexibility in coverage and precise sound reproduction within its specified frequency range.

Features:

  • 1” exit compression driver
  • PT waveguide
  • 205 mm (8 in) low-frequency transducer
  • compact enclosure
  • 500W program power
  • dual Neutrik NL4 connectors and screw terminal
  • FIR tuning for optimized frequency and phase response
  • coverage consistency
  • attachment points for optional U-bracket, OmniMount bracket, and stand mount accessory
Frequency Range (-10dB) 52 Hz - 20 kHz
Frequency Response (±3 dB) 63 Hz – 19 kHz
System Power Rating 250W Continuous Pink Noise, 500W Program, 1000W Peak
Impedance 8ohms
Coverage Pattern 120° x 60° / 90° x 50°
Crossover Modes Passive
Maximum SPL (1m) 117 dB
System Sensitivity (1w @ 1m) 93 dB SPL
LF Driver 1 x JBL 228H, 8 inch SFG driver with 2.5 inch edge wound voice coil
Nominal LF Driver Impedance 8ohms
HF Driver 1 x 2408H-1 1 inch exit compression driver, 1.5 inch voice coil
Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 6 x M8 points (1 top, 3 bottom, 2 rear), 4 x M6 rear for OmniMount and MultiMount models
Environmental Mil-Std 810; IPx3 per IEC529
