AC18/95-WH | COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

  • MAP: $1,430.00 / EA
  • List Price: $1,430.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

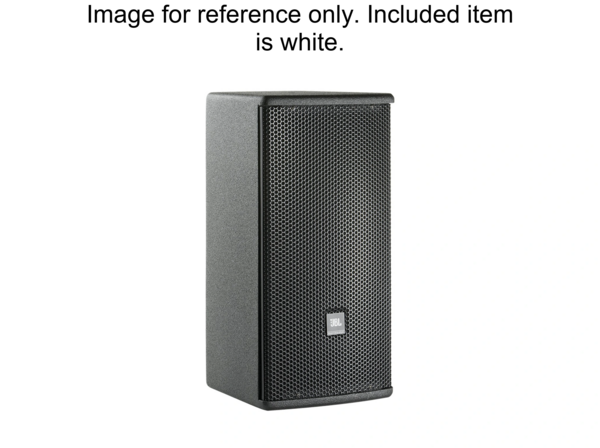

Click image to enlarge

AC18/95-WH
COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

  • UM : EA
  • Estimated Weight: 28.5

AC18/95-WH is a compact 8-inch 2-way loudspeaker featuring a 90° x 50° rotatable horn. It is part of the AE Compact family, designed for flexible configurations and high output. The system includes an 8-inch low-frequency driver paired with a 1-inch exit compression driver tweeter. The loudspeaker uses JBL's Progressive Transition rotatable waveguide, allowing selection between 90° x 50° or 120° x 60° coverage patterns.

Features:

  • 1-inch exit compression driver
  • 205 mm (8 in) low-frequency transducer
  • compact enclosure
  • 500W program power
  • dual Neutrik NL4 connectors and screw terminal
  • FIR tuning for optimized frequency and phase response
  • coverage consistency
  • attachment points for U-bracket, OmniMount-type bracket, and stand mount accessory
Frequency Range (-10dB) 52 Hz - 20 kHz
Frequency Response (±3 dB) 63 Hz – 19 kHz
System Power Rating 250W Continuous Pink Noise, 500W Program, 1000W Peak
Impedance 8ohms
Coverage Pattern 120° x 60° (Model 26), 90° x 50° (Model 95)
Crossover Modes Passive
Maximum SPL (1m) 117 dB
System Sensitivity (1W @ 1m) 93 dB SPL
LF Driver 1 x JBL 228H, 205 mm (8 in) SFG driver with 64 mm (2.5 in) edge wound voice coil
Nominal LF Driver Impedance 8ohms
HF Driver 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 6 x M8 points; 1 top, 3 bottom, 2 rear; 4 x M6 rear for OmniMount 30.0 and MultiMount MM-022-BT, MM-024-BT, MM-020-CM
Environmental Mil-Std 810; IPx3 per IEC529; use WRC or WRX for higher ratings
