AC18/95-WRC | COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

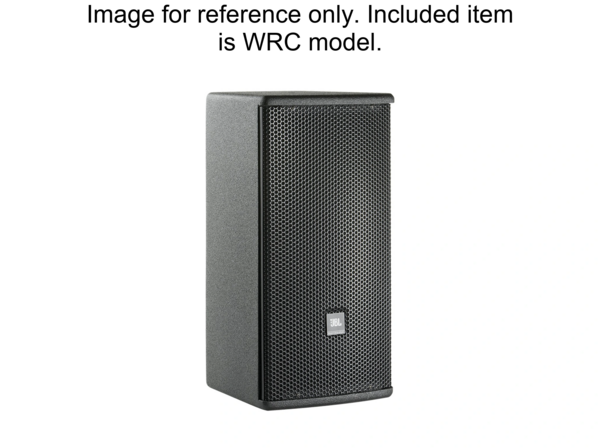

Click image to enlarge

AC18/95-WRC
COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

  • UM : EA

AC18/95-WRC is a compact 8-inch two-way loudspeaker featuring a rotatable horn with selectable coverage patterns of 90° x 50° or 120° x 60°. It uses a 1-inch exit compression driver and JBL's Progressive Transition Rotatable Waveguide design to allow adjustable coverage angles. The system is part of the AE Compact series and is designed to provide configurable directional sound output in a compact enclosure.

Features:

  • 1” Exit Compression Driver Coverage
  • 205 mm (8 in) LF transducer
  • Compact enclosure
  • 500W Program power
  • Dual Neutrik NL4 connectors plus screw terminal
  • FIR Tuning for optimized frequency and phase response
  • Coverage consistency and sound quality
  • Attachment points for U-bracket, OmniMount bracket, and stand mount accessory
Frequency Range 52 Hz - 20 kHz
Frequency Response 63 Hz – 19 kHz
System Power Rating 250W Continuous Pink Noise, 500W Program, 1000W Peak
Impedance 8ohms
Coverage Pattern 120° x 60° / 90° x 50°
Crossover Modes Passive
Maximum SPL (1m) 117 dB
System Sensitivity (1W @ 1m) 93 dB SPL
LF Driver 1 x JBL 228H, 205 mm (8 in) SFG driver with 64 mm (2.5 in) edge-wound voice coil
Nominal LF Driver Impedance 8ohms
HF Driver 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Enclosure 12 mm and 15 mm exterior-grade multi-ply hardwood plywood
Suspension Attachment 6 x M8 points; 1 top, 3 bottom, 2 rear; 4 x M6 rear for OmniMount 30.0 and MultiMount MM-022-BT, MM-024-BT, MM-020-CM
Environmental Mil-Std 810; IPx3 per IEC529; use WRC or WRX for higher environmental ratings
