AC18/95-WRX | COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE
Click image to enlarge

AC18/95-WRX
COMPACT 2-WAY LOUDSPEAKER WITH 1 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

  • UM : EA
  • Estimated Weight: 17.8

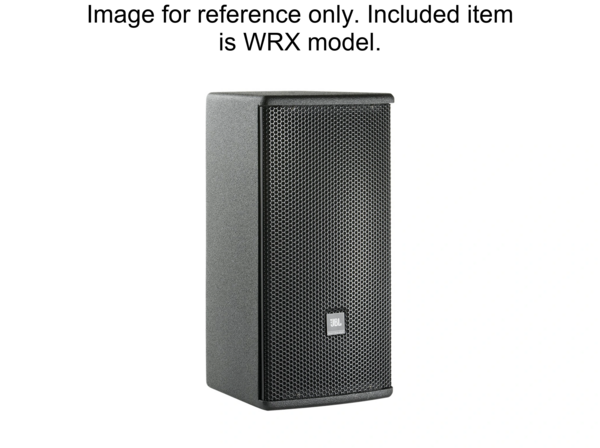

AC18/95-WRX is a compact 8-inch, 2-way loudspeaker featuring a rotatable horn with selectable coverage patterns of 90° x 50° or 120° x 60°. It incorporates a 1-inch exit compression driver paired with an 8-inch low-frequency driver. This model includes JBL's Progressive Transition Rotatable Waveguide technology, allowing adjustment of the horizontal and vertical dispersion angles. The design targets applications requiring flexible coverage configurations in a compact enclosure.

Features:

  • 1” Exit Compression Driver
  • PT Waveguide coverage
  • 205 mm (8 in) LF transducer
  • Compact enclosure
  • 500W program power
  • Dual Neutrik NL4 connectors and screw terminal
  • FIR tuning for optimized frequency and phase response
  • Coverage consistency
  • Attachment points for U-bracket, OmniMount bracket, and stand mount accessory
Frequency Range 52 Hz - 20 kHz
Frequency Response 63 Hz – 19 kHz
System Power Rating 250W Continuous, 500W Program, 1000W Peak
Impedance 8ohms
Coverage Pattern 120° x 60° (26), 90° x 50° (95)
Crossover Modes Passive
Maximum SPL (1m) 117 dB
System Sensitivity (1W @ 1m) 93 dB SPL
LF Driver 1 x JBL 228H, 8 in SFG driver with 2.5 in edge wound voice coil
Nominal LF Driver Impedance 8ohms
HF Driver 1 x 2408H-1 1 in exit compression driver, 1.5 in voice coil
Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 6 x M8 points; 4 x M6 rear for OmniMount and MultiMount
Environmental Mil-Std 810; IPx3 per IEC529. For higher ratings, use WRC or WRX
