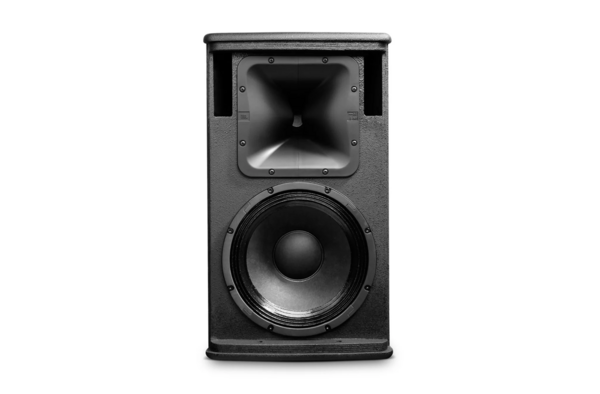

AC195 is a compact 2-way full-range loudspeaker featuring a 258 mm (10 in) low-frequency driver and a 25 mm (1 in) exit, 35 mm (1.5 in) voice-coil compression driver. It includes a rotatable PT Progressive Transition waveguide providing 90° by 50° coverage in vertical orientation and high-slope passive crossovers to minimize band overlap and control off-axis response.
The cabinet has M10 threaded suspension points and four threaded inserts on the back for mounting with MultiMount or similar brackets. AC195 is part of JBL’s AE Application Engineered Series designed for fixed installation applications.
- Compact enclosure
- 258 mm (10 in) LF transducer
- 90° x 50° rotatable waveguide
- 25 mm (1 in) exit compression driver
- 35 mm (1.5 in) voice-coil compression driver
- Dual Neutrik NL4 connectors and screw terminals
- Multiple attachment points
| Frequency Range | 68 Hz - 20 kHz |
|---|---|
| Frequency Response | 85 Hz - 18 kHz |
| System Sensitivity | 95 dB (1W @ 1m) |
| Nominal Impedance | 8 ohms |
| Maximum SPL | 118 dB (124 dB peak) |
| System Power Rating | 300W (1200W peak), 2 hrs (AES rated) |
| Coverage Pattern | 90° x 50° (H x V) |
| Crossover Frequency | 1.8 kHz |
| LF Driver | 1 x 10" woofer, 66 mm (2.5 in) voice-coil |
| HF Driver | 1 x 2408H-2 driver, 25 mm (1 in) exit, 38 mm (1.5 in) voice-coil |
| Input Connector | Dual Neutrik NL4MP connectors, covered barrier strip terminals |
| Enclosure | 15 mm multi-ply hardwood plywood |

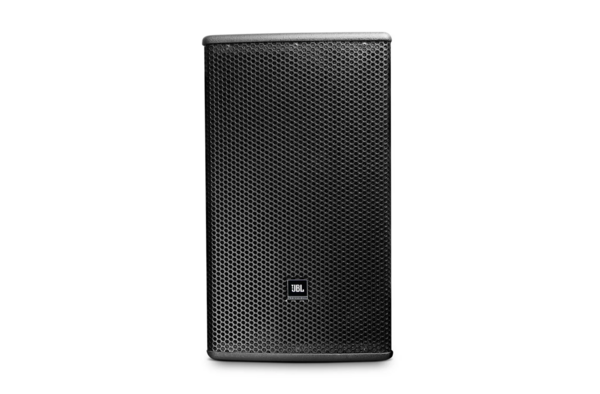

| Grille | Powder coated 1.5mm perforated steel, acoustically transparent black foam backing |
| Finish | Textured black paint |
| Suspension Attachment | 14 x M10 and 4 x M10 for wall mount, optional U-bracket and L-bracket |
| Nominal LF Driver Impedance | 8 ohms |
| Nominal HF Driver Impedance | 8 ohms |
