AC195-WH | 10" 2-WAY FULL-RANGE SYSTEM, ROTATABLE 90 X 50 WAVEGUIDE COVERAGE PATTERN WITH 2408H-2 25MM (1 IN)
AC195-WH
10" 2-WAY FULL-RANGE SYSTEM, ROTATABLE 90 X 50 WAVEGUIDE COVERAGE PATTERN WITH 2408H-2 25MM (1 IN)
AC195-WH
10" 2-WAY FULL-RANGE SYSTEM, ROTATABLE 90 X 50 WAVEGUIDE COVERAGE PATTERN WITH 2408H-2 25MM (1 IN)
- UM : EA
- Estimated Weight: 37.0

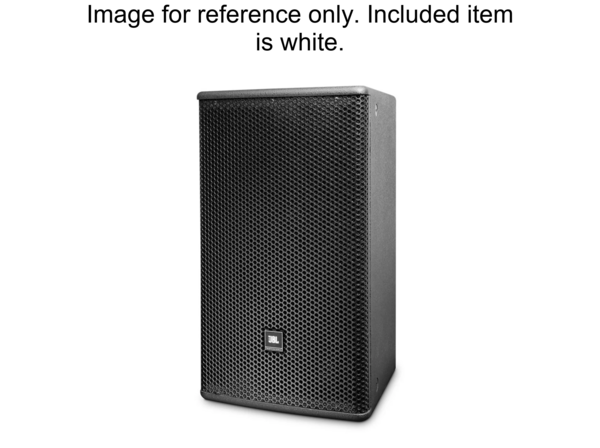

AC195-WH is a compact 10-inch 2-way full-range loudspeaker system featuring a 258 mm low-frequency driver and a 25 mm exit/35 mm voice-coil compression driver. It includes a rotatable PT Progressive Transition waveguide providing 90° by 50° coverage in vertical orientation.
The speaker has a high-slope passive crossover to reduce band overlap and control off-axis response. The cabinet includes M10 threaded suspension points and four threaded inserts on the back for mounting with MultiMount or similar hardware. AC195-WH is part of JBL’s AE Application Engineered Series designed for fixed installation applications.
- Compact enclosure
- 258 mm (10 in) LF transducer
- 90° x 50° rotatable waveguide
- 25 mm (1 in) exit compression driver
- 35 mm (1.5 in) voice-coil
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points
| Frequency Range | 68 Hz - 20 kHz |
|---|---|
| Frequency Response | 85 Hz - 18 kHz |
| System Sensitivity | 95 dB (1W @ 1m) |
| Nominal Impedance | 8 ohms |
| Maximum SPL | 118 dB (124 dB peak) |
| System Power Rating | 300W (1200W peak), 2 hrs (AES rated) |
| Coverage Pattern | 90° x 50° (H x V) |
| Crossover | 1.8 kHz |
| LF Driver | 1 x 10" woofer, 66 mm (2.5 in) voice-coil |
| HF Driver | 1 x 2408H-2 driver, 25 mm (1 in) exit, 38 mm (1.5 in) voice-coil |
| Input Connector | Dual Neutrik NL4MP connectors and covered barrier strip terminals |
| Enclosure | 15 mm multi-ply hardwood plywood |
| Grille | Powder coated 1.5 mm perforated steel with acoustically transparent black foam backing |
| Finish | Textured white paint |
| Suspension Attachment | 14 x M10 and 4 x M10 for Wall Mount Bracket; optional U-bracket, L-bracket, and wall-mount bracket |
| Nominal LF Driver Impedance | 8 ohms |
| Nominal HF Driver Impedance | 8 ohms |
