AC25 | ULTRA COMPACT DUAL 5-INCH 2-WAY LOUDSPEAKER 90X90 COVERAGE, 450W PROGRAM
AC25
ULTRA COMPACT DUAL 5-INCH 2-WAY LOUDSPEAKER 90X90 COVERAGE, 450W PROGRAM
AC25
ULTRA COMPACT DUAL 5-INCH 2-WAY LOUDSPEAKER 90X90 COVERAGE, 450W PROGRAM
- UM : EA
- Estimated Weight: 18.0

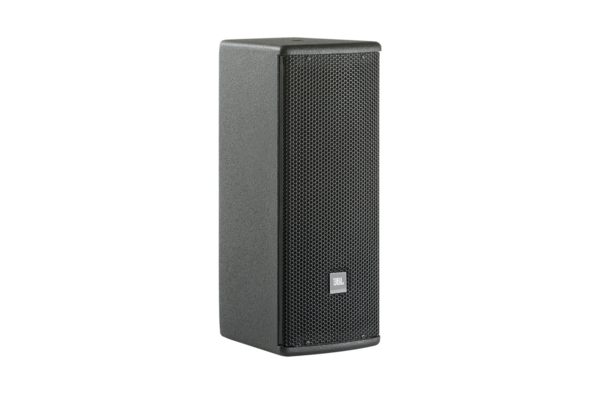

The AC25 is an ultra-compact dual 5-inch two-way loudspeaker featuring a 1-inch dome tweeter. It is part of the AE Compact family, designed to provide high output and fidelity in a small form factor.
This model is designed for flexible installation and sonic clarity, suitable for various sound reinforcement applications.

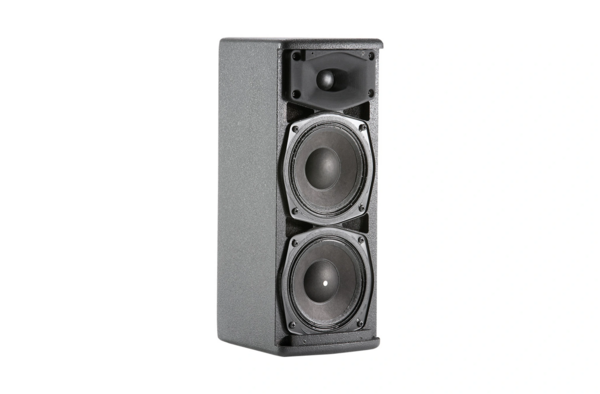

- 90° x 90° waveguide with 25 mm dome tweeter
- 135 mm (5.25 in) LF transducer
- Ultra Compact 2-way Loudspeaker with 2 x 5.25” LF
- 450W Program power
- Dual Neutrik NL4 connectors plus screw terminal
- FIR tuning for optimized frequency and phase response
- Attachment points for optional U-bracket
| Frequency Range | 80 Hz - 20 kHz |
|---|---|
| Frequency Response | 90 Hz - 18 kHz |
| System Power Rating | 300 W (AES), 225 W / 450 W / 900 W (Continuous/Program/Peak, IEC) |
| Impedance | 16 ohms |
| Coverage Pattern | 90° x 90° |
| Crossover Modes | Passive |
| Maximum SPL (1m) | 115 dB |
| System Sensitivity (1W @ 1m) | 91 dB SPL |
| LF Driver | 2 x JBL 225H, 135 mm SFG driver with 38 mm edge wound voice coil |
| Nominal LF Driver Impedance | 16 Ohms |
| HF Driver | 1 x JBL 201J, 25 mm voice coil dome tweeter |
| Enclosure | 12 mm exterior grade multi-ply hardwood plywood |
| Suspension Attachment | 4 x M8 points (1 top, 1 bottom, 2 rear), 4 x M6 rear for MultiMount MM-022-BT, MM-024-BT, or MM-020-CM |
| Environmental | Mil-Std 810; IPx3 per IEC529 |
