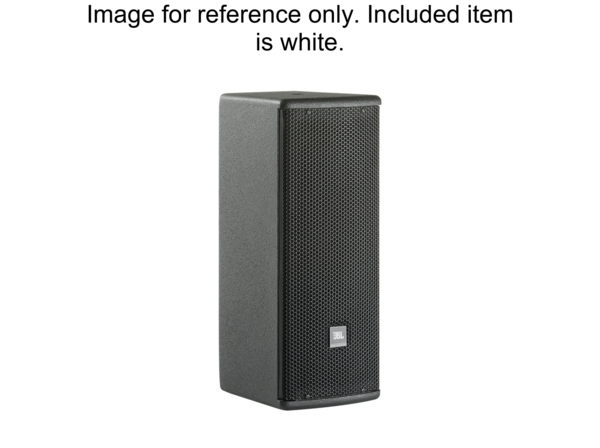

AC25-WH | ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 2 X 5.25" LF. 90° X 90° COVERAGE, PASSIVE. PRICED AS EACH.
AC25-WH
ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 2 X 5.25" LF. 90° X 90° COVERAGE, PASSIVE. PRICED AS EACH.
AC25-WH
ULTRA-COMPACT 2-WAY LOUDSPEAKER WITH 2 X 5.25" LF. 90° X 90° COVERAGE, PASSIVE. PRICED AS EACH.
- UM : EA
The AC25-WH is an ultra-compact dual 5-inch two-way loudspeaker featuring a 1-inch dome tweeter. It is part of the AE Compact family, designed to provide high output and fidelity in a small form factor.
- 90° x 90° waveguide with 25 mm dome tweeter
- 135 mm LF transducer
- Ultra compact 2-way loudspeaker
- 2 x 5.25” LF drivers
- 450W program power
- Dual Neutrik NL4 connectors and screw terminal
- FIR tuning for optimized frequency and phase response
- Attachment points for optional U-bracket
| Frequency Range | 80 Hz - 20 kHz |
|---|---|
| Frequency Response | 90 Hz - 18 kHz |
| System Power Rating | 300 W (AES rated), 225 W / 450 W / 900 W (Continuous/Program/Peak) (IEC rated) |
| Impedance | 16 ohms |
| Coverage Pattern | 90° x 90° |
| Crossover Modes | Passive |
| Maximum SPL (1m) | 115 dB |
| System Sensitivity (1W @ 1m) | 91 dB SPL |
| LF Driver | 2 x JBL 225H, 135 mm SFG driver with 38 mm edge wound voice coil |
| Nominal LF Driver Impedance | 16 Ohms |
| HF Driver | 1 x JBL 201J, 25 mm voice coil dome tweeter |
| Enclosure | 12 mm exterior grade multi-ply hardwood plywood |
| Suspension Attachment | 4 x M8 points (1 top, 1 bottom, 2 rear), 4 x M6 rear for MultiMount MM-022-BT, MM-024-BT, or MM-020-CM |
| Environmental | Mil-Std 810; IPx3 per IEC529 |
