AC25-WRX | AC25 - DUAL 5.25" 2WAY (WHITE)

  • MAP: $1,283.38 / EA
  • List Price: $1,283.38 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

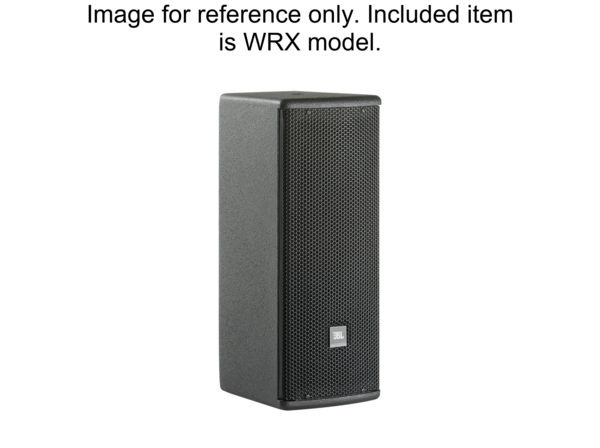

AC25 - DUAL   5.25" 2WAY (WHITE)
Click image to enlarge

AC25-WRX
AC25 - DUAL 5.25" 2WAY (WHITE)

  • UM : EA

AC25-WRX is an ultra-compact dual 5-inch, 2-way loudspeaker system. It features two 5.25-inch low-frequency drivers and a 1-inch dome tweeter. The enclosure is designed for high output within a compact form factor. This model is part of the AE Compact family and provides a fixed dispersion pattern, without the rotatable waveguide options found in other models. The system is suitable for applications requiring a compact loudspeaker with relatively high fidelity and output.

Features:

  • 90° x 90° waveguide with 25 mm dome tweeter
  • 135 mm LF transducer
  • Ultra Compact 2-way loudspeaker with 2 x 5.25” LF
  • 450W program power
  • Dual Neutrik NL4 connectors and screw terminal
  • FIR tuning for optimized frequency and phase response
  • Attachment points for optional U-bracket
Frequency Range 80 Hz - 20 kHz
Frequency Response 90 Hz - 18 kHz
System Power Rating 300 W (AES), 225 W / 450 W / 900 W (Continuous/Program/Peak IEC)
Impedance 16ohms
Coverage Pattern 90° x 90°
Crossover Modes Passive
Maximum SPL (1m) 115 dB
System Sensitivity (1w @ 1m) 91 dB SPL
LF Driver 2 x JBL 225H, 135 mm SFG driver with 38 mm edge wound voice coil
Nominal LF Driver Impedance 16ohms
HF Driver 1 x JBL 201J, 25 mm voice coil dome tweeter
Enclosure 12 mm multi-ply hardwood plywood
Suspension Attachment 4 x M8 points (1 top, 1 bottom, 2 rear); 4 x M6 rear for MultiMount MM-022-BT, MM-024-BT, MM-020-CM
Environmental Mil-Std 810; IPx3 per IEC529
