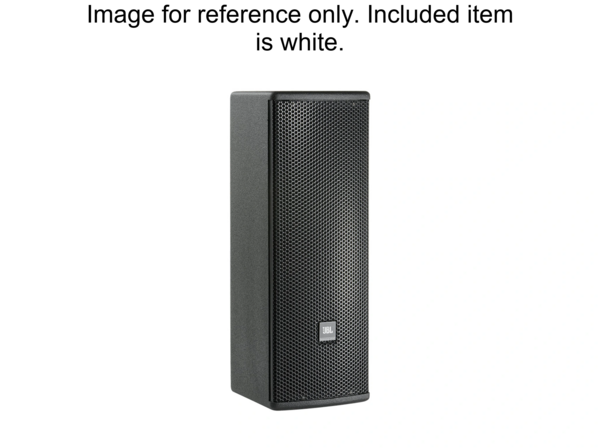

AC26-WH | COMPACT 2-WAY LOUDSPEAKER WITH 2 X 6.5" LF. 90° X 90° COVERAGE, PASSIVE. COMPACT PT

  • MAP: $1,660.00 / EA
  • List Price: $1,660.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

AC26-WH
COMPACT 2-WAY LOUDSPEAKER WITH 2 X 6.5" LF. 90° X 90° COVERAGE, PASSIVE. COMPACT PT

  • UM : EA

The AC26-WH is a 6-inch, two-way loudspeaker featuring a 1-inch exit compression driver for high-frequency output. It belongs to the AE Compact family and provides options for rotatable waveguides with coverage patterns of 90° x 50° or 120° x 60°. The design supports flexibility in sound coverage for various applications.

  • 1” Exit Compression Driver with 90° x 90° Coverage
  • 165 mm (6.5 in) LF transducer
  • Ultra compact enclosure
  • 360W Program Power
  • Dual Neutrik NL4 connectors plus screw terminal
  • Attachment points for optional U-bracket, OmniMount® type bracket, and stand mount accessory
Frequency Range 55 Hz - 20 kHz
Frequency Response 70 Hz - 18 kHz
System Power Rating 350 W (AES), 180 W / 360 W / 720 W (Continuous/Program/Peak, IEC)
Impedance 8 ohms
Coverage Pattern 90° x 90°
Maximum SPL (1m) 117 dB
System Sensitivity (1W @ 1m) 92 dB SPL
LF Driver 2 x JBL 226J, 165 mm SFG driver with 50 mm voice coil
Nominal LF Driver Impedance 8 ohms
HF Driver 1 x 2414H 25 mm exit compression driver, 25 mm voice coil
Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 6 x M8 points; 1 top, 3 bottom, 2 rear; 4 x M6 rear for OmniMount or MultiMount
Environmental Mil-Std 810; IPx3 per IEC529
