AC26-WRC | COMPACT 2-WAY LOUDSPEAKER WITH 2 X 6.5" LF. 90° X 90° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE
AC26-WRC
COMPACT 2-WAY LOUDSPEAKER WITH 2 X 6.5" LF. 90° X 90° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE
Click image to enlarge
AC26-WRC
COMPACT 2-WAY LOUDSPEAKER WITH 2 X 6.5" LF. 90° X 90° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE
- UM : EA
- Estimated Weight: 30.0

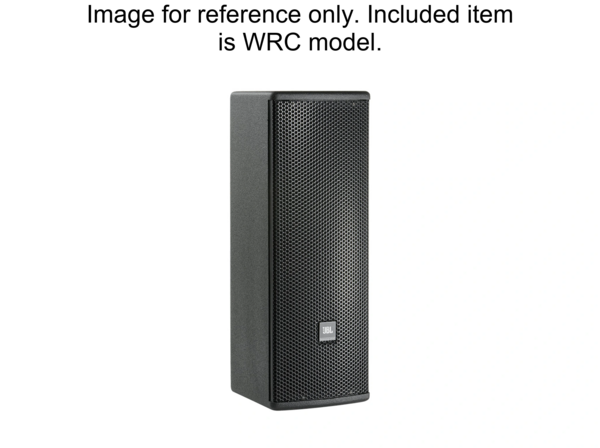

AC26-WRC is a 2-way loudspeaker system featuring a 6-inch low-frequency driver and a 1-inch exit compression driver. It is part of the AE Compact series, designed for high output performance and flexibility. The AC26-WRC includes a fixed coverage waveguide optimized for its dispersion characteristics. The system supports standard mounting and rigging options suitable for professional audio applications.
Features:
- 1 inch exit compression driver with 90° x 90° coverage
- PT waveguide
- 165 mm (6.5 inch) low-frequency transducer
- Ultra compact enclosure
- 360W program power
- Dual Neutrik NL4 connectors and screw terminal
- Attachment points for optional U-bracket, OmniMount type bracket, and stand mount accessory
| Frequency Range | 55 Hz - 20 kHz |
|---|---|
| Frequency Response | 70 Hz - 18 kHz |
| System Power Rating | 350 W (AES), 180 W / 360 W / 720 W (Continuous/Program/Peak IEC) |
| Impedance | 8ohms |
| Coverage Pattern | 90° x 90° |
| Maximum SPL (1m) | 117 dB |
| System Sensitivity (1w @ 1m) | 92 dB SPL |
| LF Driver | 2 x JBL 226J, 165 mm SFG driver, 50 mm edge wound voice coil |
| Nominal LF Driver Impedance | 8ohms |
| HF Driver | 1 x 2414H 25 mm exit compression driver, 25 mm voice coil |
| Enclosure | 12 mm and 15 mm exterior grade multi-ply hardwood plywood |
| Suspension Attachment | 6 x M8 points; 4 x M6 rear for OmniMount or MultiMount |
| Environmental | Mil-Std 810; IPx3 per IEC529 |
×
