AC266 | 12" 2-WAY SYSTEM, 60 X 60 WAVEGUIDE COVERAGE PATTERN WITH 2408H-2 25MM (1 IN) EXIT,
AC266
12" 2-WAY SYSTEM, 60 X 60 WAVEGUIDE COVERAGE PATTERN WITH 2408H-2 25MM (1 IN) EXIT,
AC266
12" 2-WAY SYSTEM, 60 X 60 WAVEGUIDE COVERAGE PATTERN WITH 2408H-2 25MM (1 IN) EXIT,
- UM : EA
- Estimated Weight: 40.0

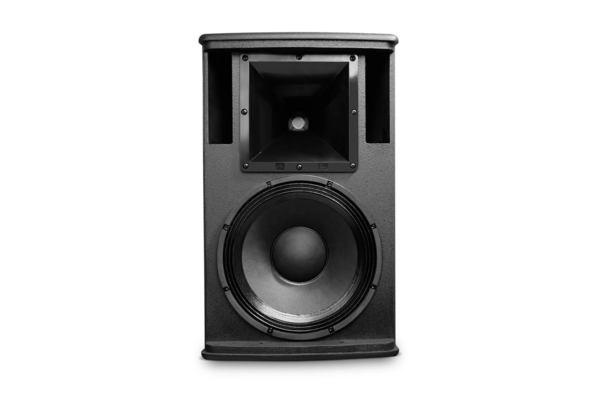

AC266 is a compact 2-way full-range loudspeaker system featuring a 310 mm (12 in) low-frequency driver and a 25 mm (1 in) exit, 35 mm (1.5 in) voice-coil compression driver. It uses a horn with 60° by 60° coverage in both vertical and horizontal orientations.

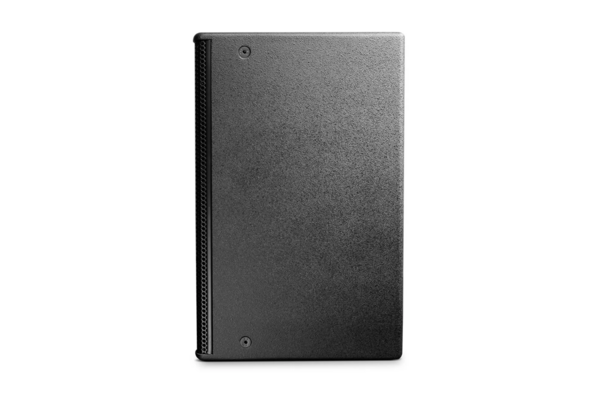

The speaker includes high-slope passive crossovers for reduced band overlap and controlled off-axis response. The cabinet has M10 threaded suspension points and four threaded inserts on the back for mounting with MultiMount® or similar hardware.
- 15mm robust enclosure with black textured finish
- 310 mm (12 in) low-frequency transducer
- 60° x 60° waveguide with 25 mm (1 in) exit compression driver
- 35 mm (1.5 in) diaphragm compression driver
- Dual Neutrik NL4 connectors and screw terminals
- Multiple attachment points for flexibility
| Frequency Range | 63 Hz - 20 kHz |
|---|---|
| Frequency Response | 80 Hz - 18 kHz |
| System Sensitivity | 97 dB (1W @ 1m) |
| Nominal Impedance | 8 ohms |
| Maximum SPL | 121 dB (127 dB peak) |
| System Power Rating | 350W (1400W peak), 2 hrs (AES rated), 250W/500W/1000W (Continuous/Program/Peak) (IEC rated) |
| Coverage Pattern | 60° x 60° (H x V) |
| Crossover Frequency | 1.5 kHz |
| LF Driver | 1 x 12" woofer, 310 mm driver with 66 mm voice-coil |
| HF Driver | 1 x 2408H-2 driver with 25 mm exit and 35 mm voice-coil |
| Input Connector | Dual Neutrik NL4MP connectors plus covered barrier trip terminals |
| Enclosure Material | 15 mm multi-ply hardwood plywood |

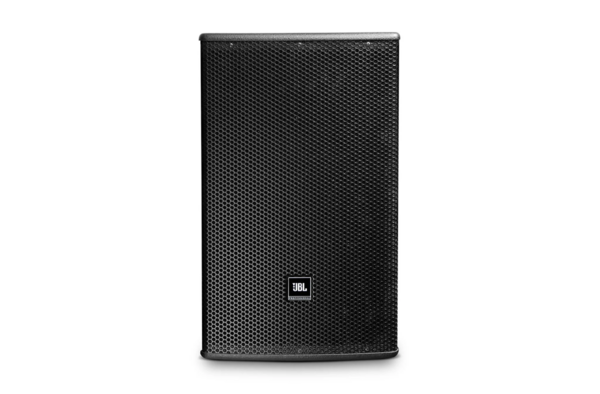

| Grille | Powder coated, 1.5 mm perforated steel with acoustically transparent black foam backing |
| Finish | Textured black paint, white available on request |
| Suspension / Mounting | 14 x M10 and 4 x M10 for wall mount bracket; optional U-bracket, L-bracket, wall-mount bracket |
| Crossover Mode | Passive |
| Nominal LF Driver Impedance | 8 ohms |
| Nominal HF Driver Impedance | 8 ohms |
