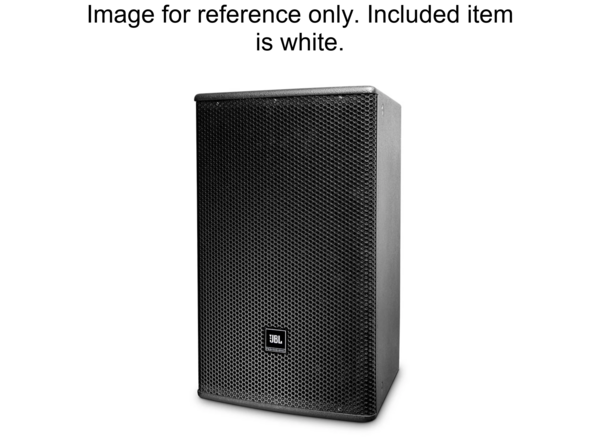

AC266-WH | 12" 2-WAY SYSTEM, 60 X 60 WAVEGUIDE COVERAGE PATTERN WITH 2408H-2 25MM (1 IN) EXIT / WHITE

  • MAP: $1,399.00 / EA
  • List Price: $1,679.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

AC266-WH
12" 2-WAY SYSTEM, 60 X 60 WAVEGUIDE COVERAGE PATTERN WITH 2408H-2 25MM (1 IN) EXIT / WHITE

  • UM : EA

AC266-WH is a compact 2-way full-range loudspeaker system featuring a 310 mm (12 in) low-frequency driver and a 25 mm (1 in) exit, 35 mm (1.5 in) voice-coil compression driver. It uses a horn with 60° by 60° coverage in both vertical and horizontal orientations.

The speaker includes high-slope passive crossovers for reduced band overlap and controlled off-axis response. The cabinet has M10 threaded suspension points and four threaded inserts on the back for mounting with MultiMount or similar hardware.

  • 15mm robust enclosure with black textured finish
  • 310 mm (12 in) LF transducer
  • 60° x 60° waveguide
  • 25 mm (1 in) exit compression driver with 35 mm (1.5 in) diaphragm
  • Dual Neutrik NL4 connectors and screw terminals
  • Multiple attachment points for flexibility
Frequency Range 63 Hz - 20 kHz
Frequency Response 80 Hz - 18 kHz
System Sensitivity 97 dB (1W @ 1m)
Nominal Impedance 8 ohms
Maximum SPL 121 dB (127 dB peak)
System Power Rating 350W (1400W peak), 2 hrs AES rated; 250W/500W/1000W Continuous/Program/Peak IEC rated
Coverage Pattern 60° x 60° (H x V)
Crossover Frequency 1.5 kHz
LF Driver 1 x 12 inch woofer, 66 mm voice coil
HF Driver 1 x 2408H-2 driver, 25 mm exit, 35 mm voice coil
Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure Material 15 mm multi-ply hardwood plywood
Grille Powder coated, 1.5 mm perforated steel with acoustically transparent black foam backing
Finish Textured black paint
Suspension / Mounting 14 x M10 and 4 x M10 for wall mount bracket; optional U-bracket, L-bracket, and wall-mount bracket
Crossover Mode Passive
Nominal LF Driver Impedance 8 ohms
Nominal HF Driver Impedance 8 ohms
