AC28/26 | COMPACT 2-WAY LOUDSPEAKER WITH 2 X 8" LF. 120° X 60° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

  • MAP: $1,930.00 / EA
  • List Price: $1,930.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
COMPACT 2-WAY LOUDSPEAKER WITH 2 X 8" LF. 120° X 60° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE
COMPACT 2-WAY LOUDSPEAKER WITH 2 X 8" LF. 120° X 60° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE
Click image to enlarge
COMPACT 2-WAY LOUDSPEAKER WITH 2 X 8" LF. 120° X 60° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE
COMPACT 2-WAY LOUDSPEAKER WITH 2 X 8" LF. 120° X 60° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

AC28/26
COMPACT 2-WAY LOUDSPEAKER WITH 2 X 8" LF. 120° X 60° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

  • UM : EA

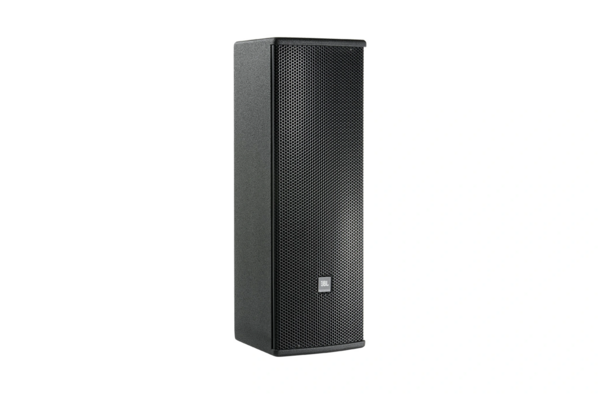

AC28/26 Dual 8-Inch 2-Way Loudspeaker System

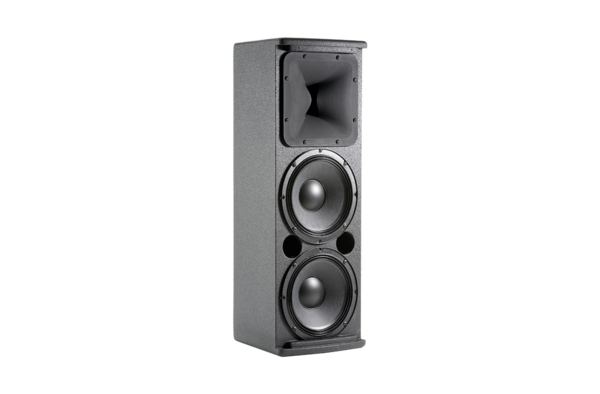

The AC28/26 is a dual 8-inch, 2-way loudspeaker featuring a 1-inch exit compression driver. It includes JBL's Progressive Transition Rotatable Waveguide, allowing configurable coverage patterns of 90° x 50° or 120° x 60°. The system delivers high output and is part of the AE Compact series.

  • 1” Exit Compression Driver with PT Waveguide
  • 205 mm (8 in) LF transducer
  • Compact enclosure
  • 750W Program power
  • Dual Neutrik NL4 connectors plus screw terminal
  • FIR Tuning for optimized frequency and phase response
  • Coverage consistency and sound quality
  • Attachment points for U-bracket, OmniMount type bracket, and stand mount accessory
Frequency Range (-10dB) 53 Hz - 20 kHz
Frequency Response (±3 dB) 65 Hz – 20 kHz
System Power Rating 700 W (AES rated), 375 W / 750 W / 1500 W (Continuous/Program/Peak IEC rated)
Impedance 8 ohms
Coverage Pattern 120° x 60° / 90° x 50°
Crossover Modes Passive
Maximum SPL (1m) 120 dB
System Sensitivity (1w @ 1m) 94 dB SPL
LF Driver 2 x JBL 228J, 205 mm (8 in) SFG™ driver with 64 mm (2.5 in) edge wound voice coil
Nominal LF Driver Impedance 8 ohms
HF Driver 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 6 x M8 points; 1 top, 3 bottom, 2 rear; 4 x M8 rear for MultiMount® MM-120-BT
Environmental Mil-Std 810; IPx3 per IEC529; For higher environmental ratings, use WRC or WRX
