AC28/26-WRC | COMPACT 2-WAY LOUDSPEAKER WITH 2 X 8" LF. 120° X 60° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
COMPACT 2-WAY LOUDSPEAKER WITH 2 X 8" LF. 120° X 60° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

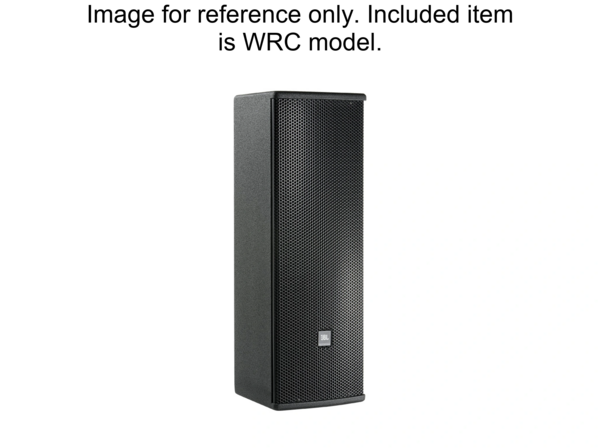

Click image to enlarge

AC28/26-WRC
COMPACT 2-WAY LOUDSPEAKER WITH 2 X 8" LF. 120° X 60° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

  • UM : EA
  • Estimated Weight: 56.0

AC28/26-WRC is a compact dual 8-inch 2-way loudspeaker system featuring a rotatable horn with selectable coverage patterns of 120° x 60° or 90° x 50°. The system includes dual 8-inch low-frequency drivers and a 1-inch exit compression driver tweeter. The rotatable horn uses JBL's Progressive Transition technology to provide adjustable horizontal and vertical dispersion. This model is part of the AE Series and designed for applications requiring flexible coverage and high output in a compact enclosure.

Features:

  • 1” exit compression driver with PT waveguide
  • 205 mm (8 in) low-frequency transducer
  • compact enclosure
  • 750W program power
  • dual Neutrik NL4 connectors plus screw terminal
  • FIR tuning for optimized frequency and phase response
  • coverage consistency
  • attachment points for optional U-bracket, OmniMount type bracket, and stand mount accessory
Frequency Range (-10dB) 53 Hz - 20 kHz
Frequency Response (±3 dB) 65 Hz – 20 kHz
System Power Rating 700 W (AES rated), 375 W / 750 W / 1500 W (Continuous/Program/Peak) (IEC rated)
Impedance 8ohms
Coverage Pattern 120° x 60° / 90° x 50°
Crossover Modes Passive
Maximum SPL (1m) 120 dB
System Sensitivity (1w @ 1m) 94 dB SPL
LF Driver 2 x JBL 228J, 205 mm (8 in) SFG driver with 64 mm (2.5 in) edge wound voice coil
Nominal LF Driver Impedance 8ohms
HF Driver 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 6 x M8 points; 1 top, 3 bottom, 2 rear; 4 x M8 rear for MultiMount MM-120-BT
Environmental Mil-Std 810; IPx3 per IEC529. For higher ratings, use WRC or WRX
