AC28/95 | COMPACT 2-WAY LOUDSPEAKER WITH 2 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

  • MAP: $1,930.00 / EA
  • List Price: $1,930.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
COMPACT 2-WAY LOUDSPEAKER WITH 2 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE
COMPACT 2-WAY LOUDSPEAKER WITH 2 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE
Click image to enlarge
COMPACT 2-WAY LOUDSPEAKER WITH 2 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE
COMPACT 2-WAY LOUDSPEAKER WITH 2 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

AC28/95
COMPACT 2-WAY LOUDSPEAKER WITH 2 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

  • UM : EA
  • Estimated Weight: 25.9

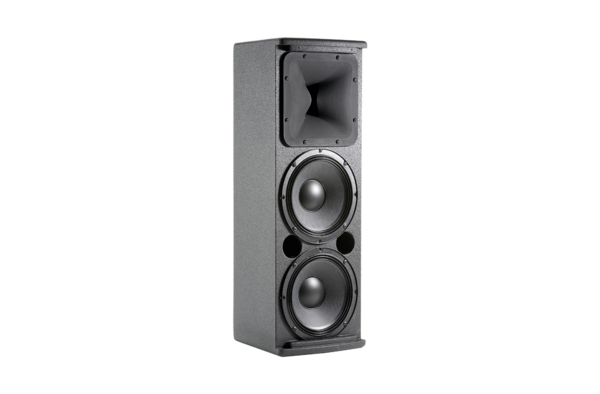

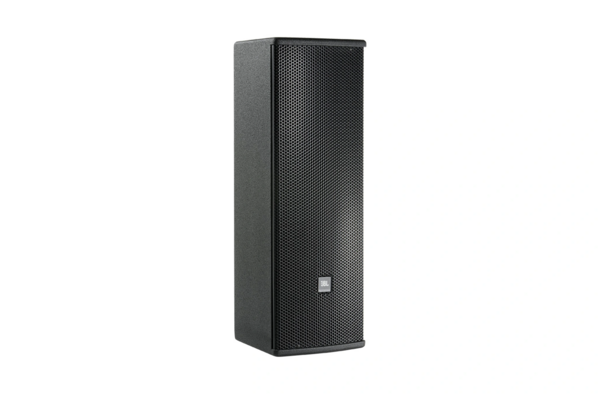

AC28/95 is a compact dual 8-inch 2-way loudspeaker system featuring a rotatable horn with selectable coverage patterns of 90° x 50° or 120° x 60°. It includes 8-inch low-frequency drivers and a 1-inch compression driver with a 1-inch exit. The system uses JBL's Progressive Transition rotatable waveguide technology to allow customization of the horizontal and vertical dispersion angles.

Features:

  • 1" Exit Compression Driver with PT Waveguide
  • 205 mm (8 in) LF transducer
  • Compact enclosure
  • 750W Program power
  • Dual Neutrik NL4 connectors plus screw terminal
  • FIR tuning for optimized frequency and phase response
  • Coverage consistency
  • Attachment points for U-bracket, OmniMount type bracket, and stand mount accessory
Frequency Range 53 Hz - 20 kHz
Frequency Response 65 Hz – 20 kHz
System Power Rating 700 W (AES rated), 375 W / 750 W / 1500 W (Continuous/Program/Peak, IEC rated)
Impedance 8ohms
Coverage Pattern 120° x 60° / 90° x 50°
Crossover Modes Passive
Maximum SPL (1m) 120 dB
System Sensitivity (1W @ 1m) 94 dB SPL
LF Driver 2 x JBL 228J, 205 mm (8 in) SFG driver with 64 mm (2.5 in) edge wound voice coil
Nominal LF Driver Impedance 8ohms
HF Driver 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 6 x M8 points (1 top, 3 bottom, 2 rear), 4 x M8 rear for MultiMount MM-120-BT
Environmental Mil-Std 810; IPx3 per IEC529. Use WRC or WRX for higher ratings
