AC28/95-WH | COMPACT 2-WAY LOUDSPEAKER WITH 2 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

  • MAP: $1,930.00 / EA
  • List Price: $1,930.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
COMPACT 2-WAY LOUDSPEAKER WITH 2 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

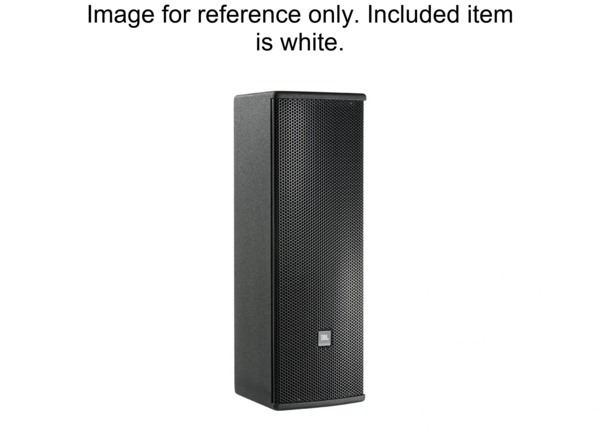

Click image to enlarge

AC28/95-WH
COMPACT 2-WAY LOUDSPEAKER WITH 2 X 8" LF. 90° X 50° COVERAGE, PASSIVE. COMPACT PT PROGRESSIVE

  • UM : EA

AC28/95-WH is a compact dual 8-inch, 2-way loudspeaker system featuring a rotatable horn with selectable coverage patterns of 90° x 60° or 120° x 60°. It incorporates a dual 8-inch low-frequency driver and a 1-inch exit compression driver for high-frequency output. The system includes JBL’s Progressive Transition rotatable waveguide, allowing adjustment of the horizontal and vertical dispersion angles. The enclosure is designed for flexible installation and precise sound coverage control.

Features:

  • 1" exit compression driver with PT waveguide
  • 205 mm (8 in) low-frequency transducer
  • compact enclosure
  • 750W program power
  • dual Neutrik NL4 connectors and screw terminal
  • FIR tuning for optimized frequency and phase response
  • attachment points for U-bracket, OmniMount type bracket, and stand mount accessory
Frequency Range (-10dB) 53 Hz - 20 kHz
Frequency Response (±3 dB) 65 Hz – 20 kHz
System Power Rating 700 W (AES rated), 375 W / 750 W / 1500 W (Continuous/Program/Peak) (IEC rated)
Impedance 8ohms
Coverage Pattern 120° x 60° / 90° x 50°
Crossover Modes Passive
Maximum SPL (1m) 120 dB
System Sensitivity (1w @ 1m) 94 dB SPL
LF Driver 2 x JBL 228J, 205 mm (8 in) SFG driver with 64 mm (2.5 in) edge wound voice coil
Nominal LF Driver Impedance 8ohms
HF Driver 1 x 2408H-1, 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
Enclosure 12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 6 x M8 points (1 top, 3 bottom, 2 rear), 4 x M8 rear for MultiMount MM-120-BT
Environmental MIL-STD-810; IPx3 per IEC529
