AC299
12" 2-WAY FULL-RANGE SYSTEM

  • UM : EA

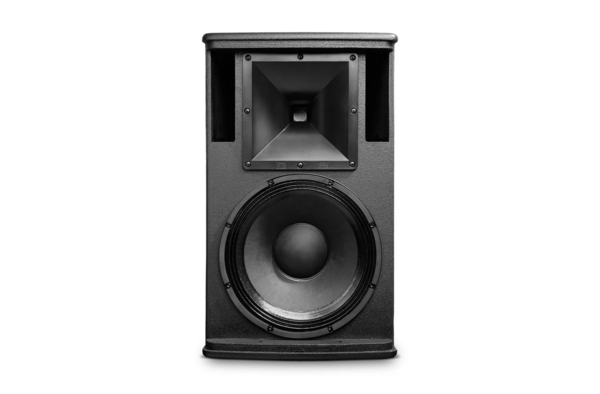

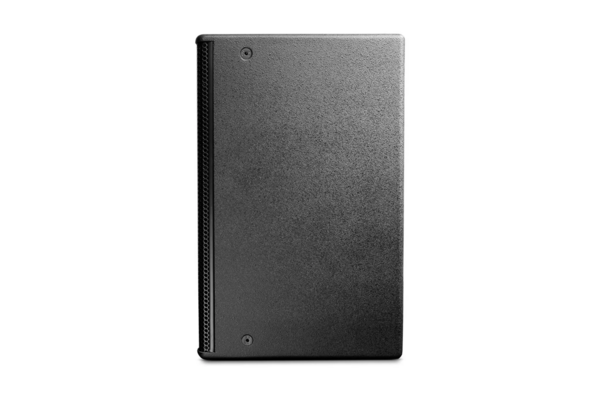

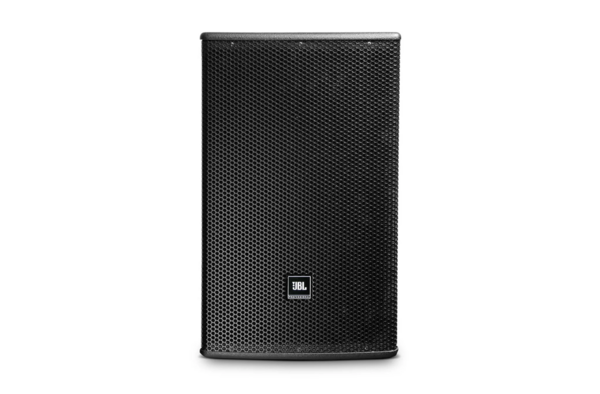

The AC299 is a 12-inch 2-way full-range loudspeaker system consisting of a 310 mm (12 in) low-frequency driver and a 25 mm (1 in) exit, 35 mm (1.5 in) voice-coil compression driver. The horn provides a 90° by 90° coverage pattern in both vertical and horizontal planes. The system uses high-slope passive crossovers to reduce band overlap and maintain controlled off-axis response. The cabinet includes M10 threaded suspension points and four threaded inserts on the back panel for mounting using a MultiMount or similar hardware.

  • 15mm black textured enclosure
  • 310mm (12 in) LF transducer
  • 90° x 90° waveguide
  • 25mm (1 in) exit compression driver
  • 35mm (1.5 in) voice-coil
  • Dual Neutrik NL4 connectors and screw terminals
  • Multiple attachment points
Frequency Range 63 Hz - 20 kHz
Frequency Response 80 Hz - 18 kHz
System Sensitivity 97 dB (1w @ 1m)
Nominal Impedance 8ohms
Maximum SPL 121 dB (127 dB peak)
System Power Rating 350W (1400W peak), 2 hrs (AES rated); 250W/500W/1000W (Continuous/Program/Peak) (IEC rated)
Coverage Pattern 90° x 90° (H x V)
Crossover Frequency 1.5 kHz
LF Driver 1 x 12" woofer, 310 mm driver with 66 mm voice-coil
HF Driver 1 x 2408H-2 driver with 25 mm exit and 35 mm voice-coil
Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure Material 15 mm multi-ply hardwood plywood
Baffle Powder coated 1.5mm perforated steel with acoustically transparent black foam backing
Finish Textured black paint finish
Suspension Attachment 14 x M10 and 4 x M10 for Wall Mount Bracket; Optional U-bracket, L-bracket, and wall-mount bracket
Crossover Modes Passive
Nominal LF Driver Impedance 8ohms
Nominal HF Driver Impedance 8ohms
