AC566
15" 2-WAY FULL-RANGE SYSTEM

  • UM : EA

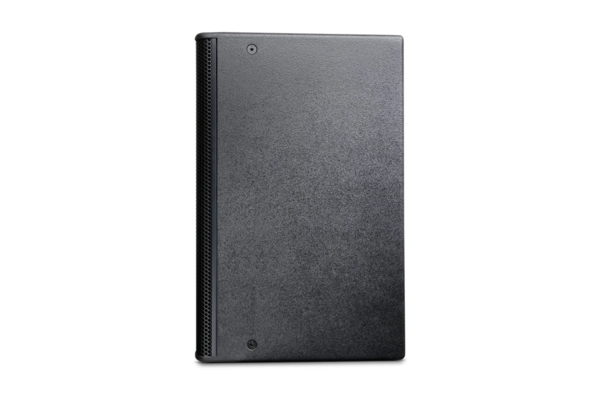

AC566 is a compact 2-way full-range loudspeaker system featuring a 384 mm (15 in) low-frequency driver and a 25 mm (1 in) exit, 35 mm (1.5 in) voice-coil compression driver. The integrated horn provides coverage of 60° by 60° in both vertical and horizontal planes. The system employs high-slope passive crossovers to reduce band overlap and to maintain controlled off-axis response. The enclosure includes M10 threaded suspension points and four threaded inserts on the rear panel compatible with MultiMount or equivalent mounting hardware. The AC566 is part of the AE Application Engineered Series designed for fixed installation applications.

  • 15mm robust enclosure with black textured finish
  • 384 mm (15 in) LF transducer
  • 60° x 60° waveguide
  • 25 mm (1 in) exit compression driver with 35 mm (1.5 in) diaphragm
  • Dual Neutrik NL4 connectors and screw terminals
  • Multiple attachment points for flexibility
Frequency Range (-10dB) 60 Hz - 20 kHz
Frequency Response (±3 dB) 75 Hz - 18 kHz
System Sensitivity (1W @ 1m) 98 dB
Nominal Impedance 8 ohms
Maximum SPL (1m) 122 dB (128 dB peak)
System Power Rating 350W (1400W peak), 2 hrs (AES rated), 250W/500W/1000W (Continuous/Program/Peak) (IEC rated)
Coverage Pattern 60° x 60° (H x V)
Crossover 1.5 kHz
LF Driver 1 x 15" woofer with 66 mm voice-coil
HF Driver 1 x 2408H-2 driver with 25 mm exit/38 mm voice-coil
Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure 15 mm multi-ply hardwood plywood
Grille Powder coated, 1.5 mm perforated steel with acoustically transparent black foam backing
Finish Textured black paint finish
Suspension Attachment 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket, wall-mount bracket
Crossover Modes Passive
Nominal LF Driver Impedance 8 ohms
Nominal HF Driver Impedance 8 ohms
