AC599 | 15" 2-WAY SYSTEM, 90 X 90 WAVEGUIDE COVERAGE PATTERN, PRICED AS EACH / BLACK
AC599
15" 2-WAY SYSTEM, 90 X 90 WAVEGUIDE COVERAGE PATTERN, PRICED AS EACH / BLACK
AC599
15" 2-WAY SYSTEM, 90 X 90 WAVEGUIDE COVERAGE PATTERN, PRICED AS EACH / BLACK
- UM : EA

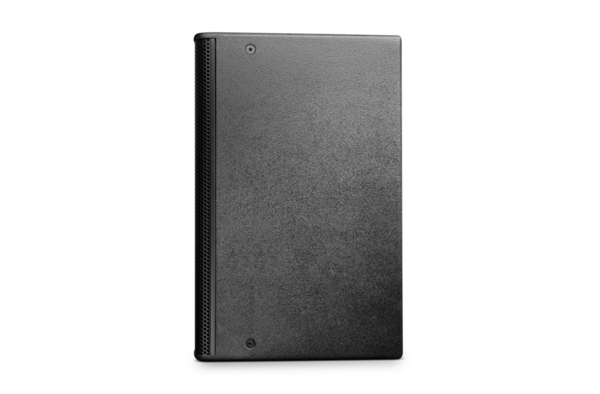

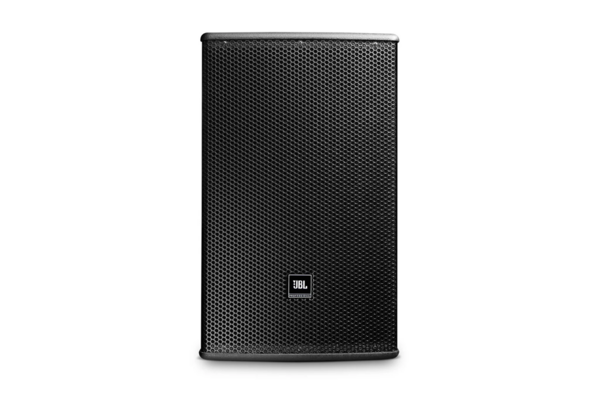

AC599 is a 15-inch, 2-way full-range loudspeaker system featuring one 384 mm (15 in) low-frequency driver and one compression driver with a 25 mm (1 in) exit and a 35 mm (1.5 in) voice coil. The integrated horn provides 90° horizontal by 90° vertical coverage. The system includes high-slope passive crossovers designed to minimize band overlap and maintain controlled off-axis frequency response. The enclosure is equipped with M10 threaded suspension points and four threaded inserts on the rear panel for mounting with a MultiMount or equivalent bracket. The AC599 is part of the JBL AE Application Engineered Series for fixed installation applications.
Features:
- 15mm robust enclosure with black textured finish
- 384 mm (15 in) LF transducer
- 90° x 90° waveguide
- 25 mm (1 in) exit 35 mm (1.5 in) diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple attachment points for flexibility
| Frequency Range | 60 Hz - 20 kHz |
|---|---|
| Frequency Response | 75 Hz - 18 kHz |
| System Sensitivity | 98 dB (1W @ 1m) |
| Nominal Impedance | 8ohms |
| Maximum SPL | 122 dB (128 dB peak) at 1m |
| System Power Rating | 350W (1400W peak), 2 hrs (AES rated), 250W/500W/1000W (Continuous/Program/Peak) (IEC rated) |
| Coverage Pattern | 90° x 90° (H x V) |
| Crossover | 1.5 kHz |
| LF Driver | 1 x 15" woofer, 381 mm driver with 38 mm voice-coil |
| HF Driver | 1 x 2408H-2 driver with 25 mm exit and 38 mm voice-coil |
| Input Connector | Dual Neutrik NL4MP connectors plus covered barrier trip terminals |
| Enclosure | 15 mm multi-ply hardwood plywood |
| baffle | Powder coated, 1.5 mm perforated steel with acoustically transparent black foam backing |
| Finish | Textured black paint finish; white available upon request |
| Suspension Attachment | 14 x M10 and 4 x M10 for wall mount bracket; optional U-bracket, overhead suspension bracket, wall-mount bracket |
| Crossover Modes | Passive |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
