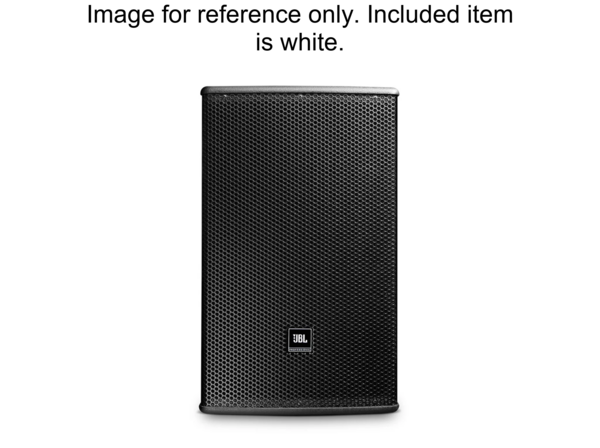

AC599-WH | 15" 2-WAY SYSTEM, 90 X 90 WAVEGUIDE COVERAGE PATTERN, PRICED AS EACH / WHITE
AC599-WH
15" 2-WAY SYSTEM, 90 X 90 WAVEGUIDE COVERAGE PATTERN, PRICED AS EACH / WHITE
AC599-WH
15" 2-WAY SYSTEM, 90 X 90 WAVEGUIDE COVERAGE PATTERN, PRICED AS EACH / WHITE
- UM : EA
AC599-WH is a 15-inch, 2-way full-range loudspeaker system featuring a 384 mm (15 in) low-frequency driver and a compression driver with a 25 mm (1 in) exit and a 35 mm (1.5 in) voice coil. The loudspeaker includes a horn with 90° horizontal by 90° vertical coverage. It uses high-slope passive crossovers to reduce frequency band overlap and provides controlled off-axis response. The enclosure has M10 threaded suspension points and four threaded inserts on the back for mounting compatibility with MultiMount or similar systems. The cabinet is designed for fixed installation applications.
Features:
- 15mm robust enclosure with black textured finish
- 384mm (15 in) LF transducer
- 90° x 90° waveguide
- 25mm (1 in) exit compression driver with 35mm (1.5 in) diaphragm
- Dual Neutrik NL4 connectors and screw terminals
- Multiple attachment points
| Frequency Range (-10dB) | 60 Hz - 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 75 Hz - 18 kHz |
| System Sensitivity (1w @ 1m) | 98 dB |
| Nominal Impedance | 8ohms |
| Maximum SPL (1m) | 122 dB (128 dB peak) |
| System Power Rating | 350W (1400W peak), 2 hrs (AES rated), 250W/500W/1000W (Continuous/Program/Peak) (IEC rated) |
| Coverage Pattern | 90° x 90° (H x V) |
| Crossover | 1.5 kHz |
| LF Driver | 1 x 15" woofer with 38 mm (1.5 in) voice-coil |
| HF Driver | 1 x 2408H-2 driver with 25 mm (1 in) exit and 38 mm (1.5 in) voice-coil |
| Input Connector | Dual Neutrik NL4MP connectors plus covered barrier trip terminals |
| Enclosure | 15 mm multi-ply hardwood plywood |
| baffle | Powder coated, 1.5mm perforated steel with acoustically transparent black foam backing |
| Finish | Textured black paint finish, white (-WH) available |
| Suspension Attachment | 14 x M10 and 4 x M10 for Wall Mount Bracket, optional U-bracket, overhead suspension bracket, and wall-mount bracket |
| Crossover Modes | Passive |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
