AC895 | 8" 2-WAY FULL-RANGE SYSTEM, ROTATABLE 90 X 50 WAVEGUIDE COVERAGE PATTERN WITH 2414H-C 25MM (1 IN)
AC895
8" 2-WAY FULL-RANGE SYSTEM, ROTATABLE 90 X 50 WAVEGUIDE COVERAGE PATTERN WITH 2414H-C 25MM (1 IN)
AC895
8" 2-WAY FULL-RANGE SYSTEM, ROTATABLE 90 X 50 WAVEGUIDE COVERAGE PATTERN WITH 2414H-C 25MM (1 IN)
- UM : EA

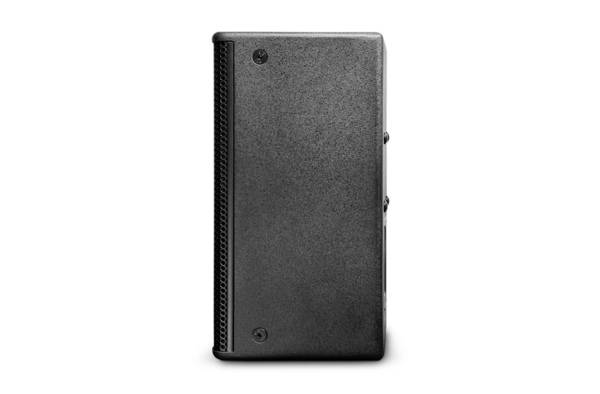

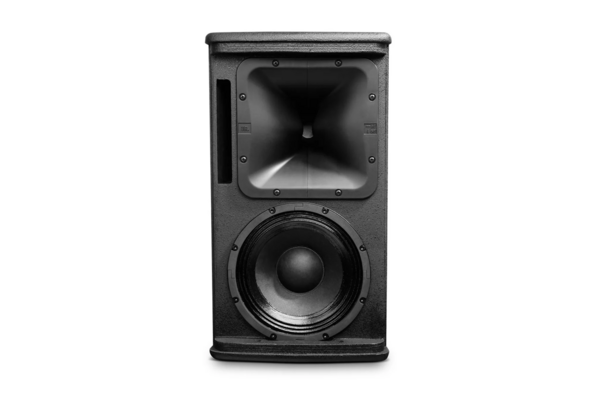

AC895 is a compact 2-way full-range loudspeaker system featuring an 8-inch (209 mm) low-frequency driver and a 1-inch (25 mm) exit compression driver with a 1-inch (25 mm) voice coil. It includes a rotatable PT Progressive Transition waveguide that provides 90° horizontal by 50° vertical coverage when the cabinet is oriented vertically. The system uses high-slope passive crossovers to minimize band overlap and maintain controlled off-axis response. The enclosure includes M10 threaded suspension points and four threaded inserts on the back panel for mounting with a MultiMount or similar system. The AC895 is designed for fixed installation applications.
Features:
- Compact enclosure
- 209 mm (8 in) LF transducer
- 90° x 50° rotatable waveguide
- 25 mm (1 in) diaphragm compression driver
- Dual Neutrik NL4 connectors and screw terminals
- Multiple attachment points
| Frequency Range | 70 Hz - 20 kHz |
|---|---|
| Frequency Response | 90 Hz - 18 kHz |
| System Sensitivity | 94 dB (1W @ 1m) |
| Nominal Impedance | 8ohms |
| Maximum SPL | 116 dB (122 dB peak) |
| System Power Rating | 250W (1000W peak), 2 hrs (AES rated), 150W/300W/600W (Continuous/Program/Peak) (IEC rated) |
| Coverage Pattern | 90° x 50° (H x V) |
| Crossover Frequency | 2 kHz |
| LF Driver | 1 x 8" woofer, 50 mm (2 in) voice-coil |
| HF Driver | 1 x 2414H-C driver, 25 mm (1 in) exit and voice-coil |
| Input Connector | Dual Neutrik NL4MP connectors and covered barrier terminals |
| Enclosure | 15 mm multi-ply hardwood plywood |

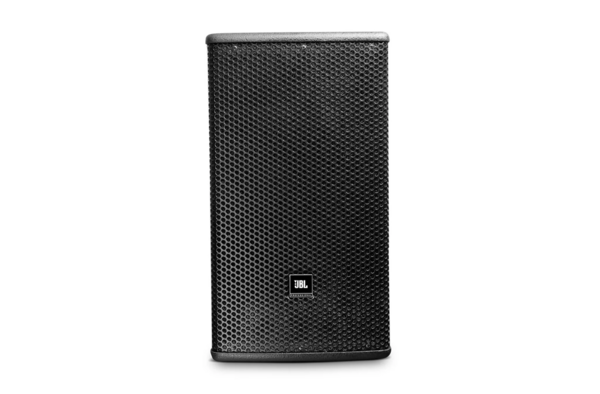

| baffle | Powder coated 1.5mm perforated steel with acoustically transparent black foam backing |
| Finish | Textured black paint finish; white available upon request |
| Suspension Attachment | 14 x M10 and 4 x M10 for Wall Mount Bracket; optional U-bracket, L-bracket, and wall-mount bracket |
| Crossover Mode | Passive |
| Nominal LF Driver Impedance | 8ohms |
| Nominal HF Driver Impedance | 8ohms |
