AC895-WH | 8" 2-WAY FULL-RANGE SYSTEM, ROTATABLE 90 X 50 WAVEGUIDE COVERAGE PATTERN WITH

  • MAP: $1,075.00 / EA
  • List Price: $1,075.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
8" 2-WAY FULL-RANGE SYSTEM, ROTATABLE 90 X 50 WAVEGUIDE COVERAGE PATTERN WITH
Click image to enlarge

AC895-WH
8" 2-WAY FULL-RANGE SYSTEM, ROTATABLE 90 X 50 WAVEGUIDE COVERAGE PATTERN WITH

  • UM : EA

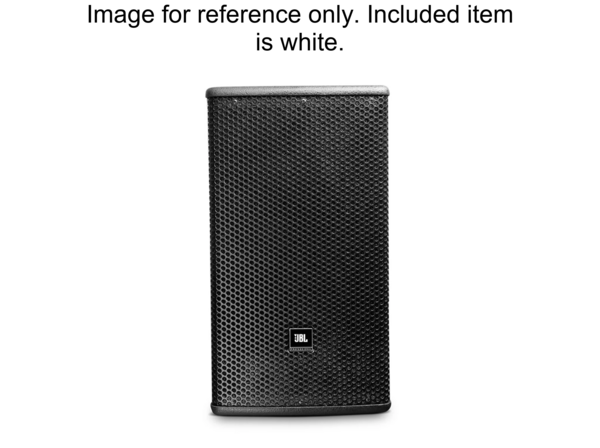

AC895-WH is a compact 2-way full-range loudspeaker system featuring an 8-inch (209 mm) low-frequency driver and a 1-inch (25 mm) exit compression driver with a 1-inch (25 mm) voice coil. It incorporates a rotatable PT Progressive Transition waveguide that provides a 90° horizontal by 50° vertical coverage pattern when the cabinet is oriented vertically. The system uses high-slope passive crossovers to reduce band overlap and improve off-axis response control. The enclosure includes M10 threaded suspension points and four threaded inserts on the rear panel designed for mounting hardware such as MultiMount brackets.

Features:

  • Compact enclosure
  • 209 mm (8 in) LF transducer
  • 90° x 50° field rotatable waveguide
  • 25 mm (1 in) diaphragm compression driver
  • Dual Neutrik NL4 connectors and screw terminals
  • Multiple attachment points
Frequency Range 70 Hz - 20 kHz
Frequency Response 90 Hz - 18 kHz
System Sensitivity 94 dB (1W @ 1m)
Nominal Impedance 8ohms
Maximum SPL 116 dB (122 dB peak)
System Power Rating 250W (1000W peak), 2 hrs (AES rated), 150W/300W/600W (Continuous/Program/Peak) (IEC rated)
Coverage Pattern 90° x 50° (H x V)
Crossover Frequency 2 kHz
LF Driver 1 x 8" woofer, 50 mm voice-coil
HF Driver 1 x 2414H-C driver with 25 mm exit and voice-coil
Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure 15 mm multi-ply hardwood plywood
baffle Powder-coated 1.5 mm perforated steel with acoustically transparent black foam backing
Finish Textured black paint finish; White (-WH) available on request
Suspension Attachment 14 x M10 and 4 x M10 for Wall Mount Bracket; Optional U-bracket, L-bracket, and wall-mount bracket
Crossover Modes Passive
Nominal LF Driver Impedance 8ohms
Nominal HF Driver Impedance 8ohms
