ACR-2009 | POWER PANEL-20A, 5-SWITCHED 4-UNSWITCHED OUTLETS, 1U, 9FT CORD

  • MAP: $355.70 / EA
  • List Price: $404.20 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
POWER PANEL-20A, 5-SWITCHED 4-UNSWITCHED OUTLETS, 1U, 9FT CORD
Click image to enlarge

ACR-2009
POWER PANEL-20A, 5-SWITCHED 4-UNSWITCHED OUTLETS, 1U, 9FT CORD

  • UM : EA
  • Estimated Weight: 9.0

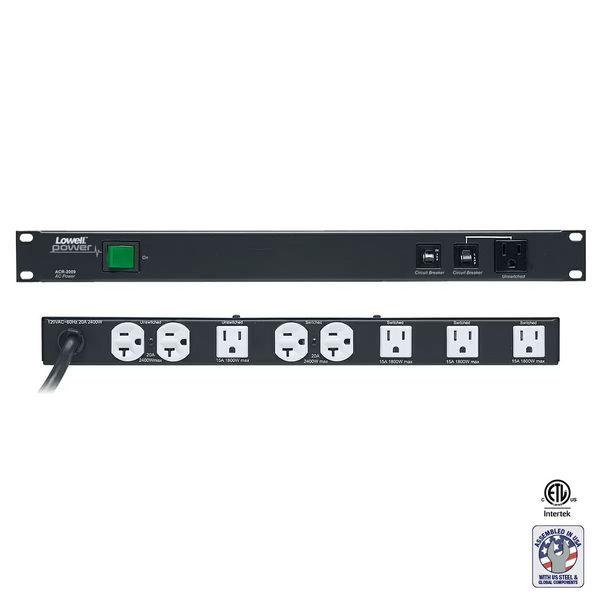

PDU model ACR-2009 with a total of nine receptacles (NEMA 5-15R/5-20R) includes eight rear receptacles, some controlled by the front rocker switch and a front convenience outlet that's always on. The 120VAC 60Hz 20A panel has a system circuit breaker and a separate circuit breaker to independently protect the front outlet, minimizing the possibility of system disruption when a non-system device is connected there. Includes attached 9-ft. cord with NEMA 5-20P plug.

  • Power Rating:  120VAC, 60Hz, 20A
  • Outlets:  9 (15A/20A) NEMA outlets (1 front, 8 rear).
  • Termination:  9 ft. attached cord with NEMA 5-20P plug
  • Chassis:  19 in. x 9 in. x 1.75 in. (1U)
  • On/off Switch:  Rocker switch controls 5 rear outlets (others are always on)
