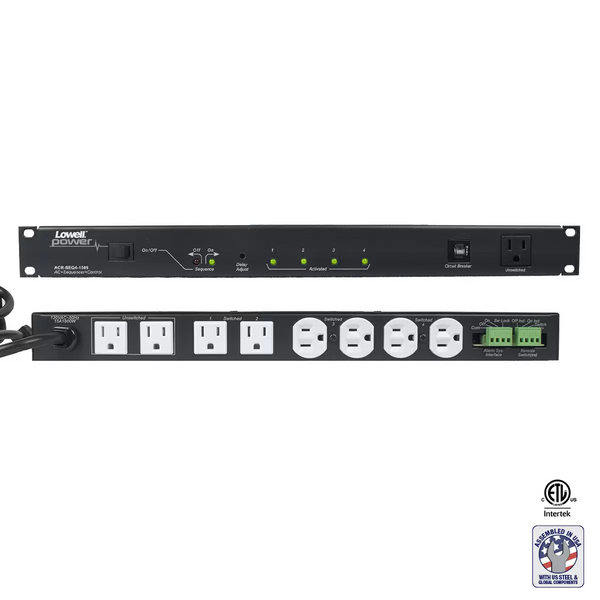

ACR-SEQ4-1509 | POWER PANEL-15A, 6-SWITCHED 3-UNSWITCHED OUTLETS, 1U, SEQ, CORD

ACR-SEQ4-1509
POWER PANEL-15A, 6-SWITCHED 3-UNSWITCHED OUTLETS, 1U, SEQ, CORD

Power distribution unit model ACR-SEQ4-1509 features nine 15A power receptacles and 4-step sequencer for time-delayed activation/deactivation of equipment directly plugged into the six outlets that are controlled by the on/off rocker switch. The other three receptacles are always on. Includes rear terminal block to connect remote switches with momentary closure.

• Chassis:  19 in. x 9 in. x 1.75 in. (1U)
• Power Rating:  120VAC, 60Hz, 15A
• Termination:  9 ft. attached cord with NEMA 5-15P plug
• Activation:  Rocker switch
• Outlets (9 total):  1 front 15A (un-switched), 2 rear 15A (un-switched) , 6 rear (15A) switched
• Four-step sequencer has a delay between steps that can be set between 0.5 and 10 seconds (screwdriver adjustable)
• Color coded LED status indicators
• Rear terminal block for connection to optional remote switches with momentary closure.
• Rear terminal block to allow system switches to be overridden for life safety system applications where fire code mandates an alarm interface.
