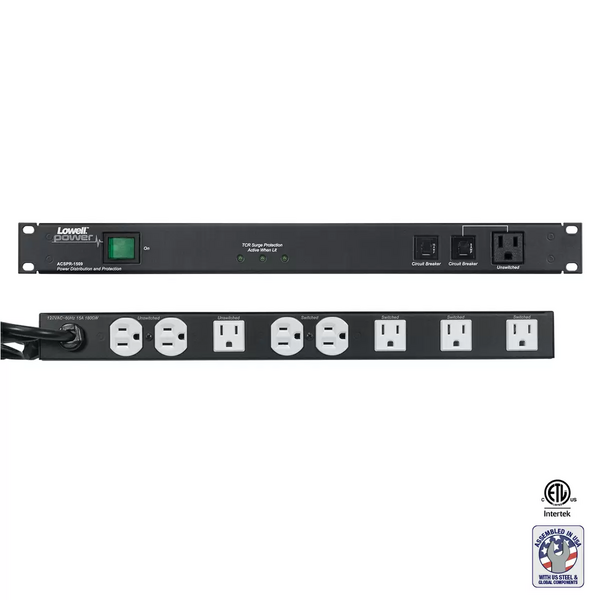

ACSPR-1509 | POWER PANEL-15A, 5-SWITCHED 4-UNSWITCHED OUTLETS, 1U, SURGE SUPP, CORD

ACSPR-1509
POWER PANEL-15A, 5-SWITCHED 4-UNSWITCHED OUTLETS, 1U, SURGE SUPP, CORD

The ACSPR Series with 9 outlets (1 front, 8 rear) features Advanced Multi-Stage Surge Protection with TCR (Triple Clamping Redundant) technology to protect electronics against power surges and spikes up to 72,000A when operating at full capacity. LED status indicators serve to alert users if the unit is compromised and in need of repair/replacement. TCR technology includes a 10 year warranty.

Model ACSPR-1509:

• 120VAC, 60Hz, 15A
• 9 (NEMA 5-15R) receptacles, some controlled by the front rocker switch
• 9 ft. attached cord with NEMA 5-15P plug
• Power Rating:  120VAC, 60Hz, 15A
• Outlets:  9 (15A) NEMA outlets (1 front, 8 rear)
• Termination:  9 ft. attached cord with NEMA 5-15P plug
• Chassis:  19 in. x 9 in. x 1.75 in. (1U)
• Multi-stage Advanced Surge Suppression protects against power surges up to 72,000A. Includes TCR triple clamping redundant protection with LEDs to monitor status.
• On/off Switch:  Rocker switch controls 5 rear outlets (other outlets are un-switched—always on when power is supplied)
