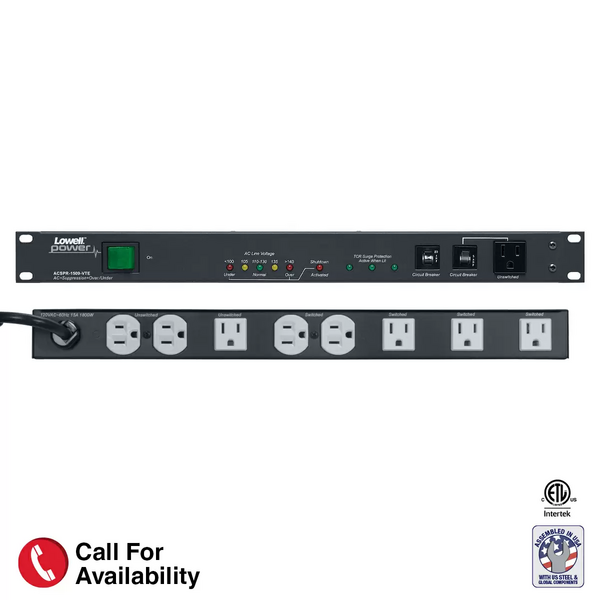

ACSPR-1509-VTE | POWER PANEL-15A, 5-SWITCHED 4-UNSWITCHED OUTLETS, 1U, SURGE SUPP, O/U

ACSPR-1509-VTE
POWER PANEL-15A, 5-SWITCHED 4-UNSWITCHED OUTLETS, 1U, SURGE SUPP, O/U

The ACSPR Series with 9 outlets (1 front, 8 rear) features Advanced Multi-Stage Surge Protection with TCR (Triple Clamping Redundant) technology to protect electronics against power surges and spikes up to 72,000A when operating at full capacity. LED status indicators serve to alert users if the unit is compromised and in need of repair/replacement. TCR technology includes a 10 year warranty.

Model ACSPR-1509-VTE:

• Unit Rating: This PDU has a 15A rating and features a 9 ft. power cord with 15A plug (NEMA 5-15P).
• Outlets: All receptacles are 15A (NEMA 5-15R). Some outlets are controlled by the activation switch.
• Over/Under Voltage Protection: The VTE monitor (Voltage Tolerance Envelope) provides protection against over/under voltage situations. The unit powers off if line voltage exceeds 140V or drops below 100V. Auto reset powers on when line voltage returns to normal.
• Power Rating:  120VAC, 60Hz, 15A
• Outlets:  9 (15A) NEMA outlets (1 front, 8 rear)
• Termination:  9-ft. attached cord with NEMA 5-15P plug
• Chassis:  19 in. x 9 in. x 1.75 in. (1U)
• Advanced surge protection to 72,000A. LED status indicators.
• On/off Switch:  Rocker switch controls 5 rear outlets (others are un-switched)
• VTE Voltage Tolerance Envelope monitor with auto reset:  Over/under protection turns outlets off when line voltage exceeds 140V or drops below 100V, and on when voltage returns to normal.
