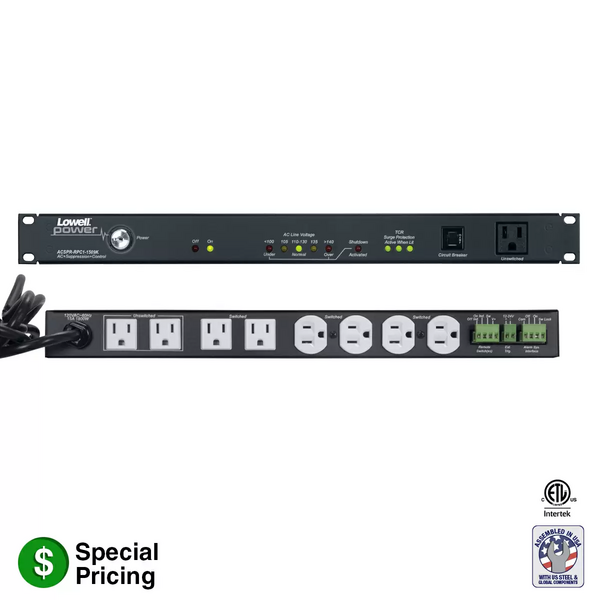

ACSPR-RPC1-1509 | POWER PANEL-15A, 6-SWITCHED 3-UNSWITCHED OUTLETS, 1U, SURGE SUPP, O/U

  • MAP: $1,150.51 / EA
  • List Price: $1,307.40 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
POWER PANEL-15A, 6-SWITCHED 3-UNSWITCHED OUTLETS, 1U, SURGE SUPP, O/U
Click image to enlarge

ACSPR-RPC1-1509
POWER PANEL-15A, 6-SWITCHED 3-UNSWITCHED OUTLETS, 1U, SURGE SUPP, O/U

  • UM : EA
  • Estimated Weight: 10.0

The ACSPR Series with 9 outlets (1 front, 8 rear) features Advanced Multi-Stage Surge Protection with TCR (Triple Clamping Redundant) technology to protect electronics against power surges and spikes up to 72,000A when operating at full capacity. LED status indicators serve to alert users if the unit is compromised and in need of repair/replacement. TCR technology includes a 10 year warranty.

Model ACSPR-RPC1-1509K:

  • Unit Rating: This PDU has a 15A rating and includes a 9 ft. power cord with 15A plug (NEMA 5-15P).
  • Outlets: All receptacles are 15A (NEMA 5-15R). Some outlets are controlled by the key activation switch.
  • This model also features the VTE monitor (Voltage Tolerance Envelope), which provides protection against over/under voltage situations. The unit powers off if line voltage exceeds 140V or drops below 100V. Auto reset powers on when line voltage returns to normal.
  • Remote Circuitry: This unit can be activated/deactivated by an external remote switch, external trigger voltage, alarm system, or sequencer connected to rear terminal blocks. Order external devices separately.
  • Outlets:  9 outlets (6 switched and 3 un-switched)
  • Power Rating:  120VAC, 60Hz, 15A
  • Advanced surge protection to 72,000A
  • Voltage Tolerance Envelope Monitor with Auto Reset:  Over/under protection turns outlets off when line voltage exceeds 140V or drops below 100V, and on when voltage returns to normal.
  • Remote power control circuitry (RPC) allows for on/off control by external DSP timed events. Rear termination blocks connect optional remote switches (momentary) and remote triggers (maintained) for on/off functions.
  • Integral override facilitates use in life safety applications where fire code mandates an alarm interface.
  • Chassis:  19 in. x 9.00 in. x 1.75 in. (1U)
  • Termination:  9 ft. attached cord with NEMA 5-15P plug
  • On/off Switch:  Key switch
