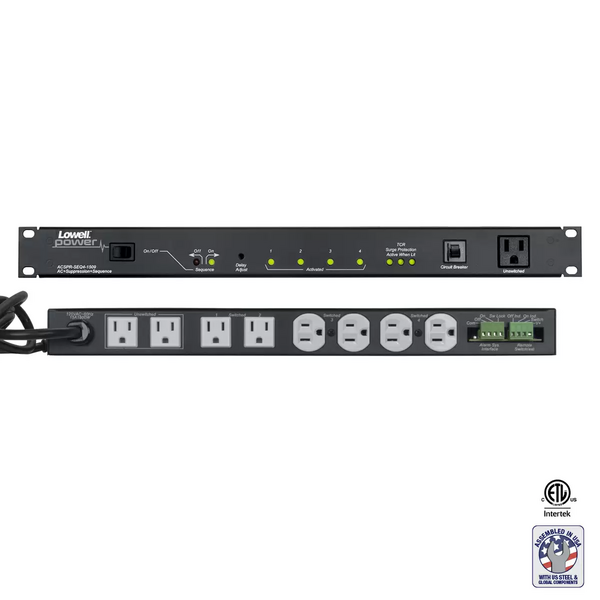

ACSPR-SEQ4-1509 | POWER PANEL-15A, 6-SWITCHED 3-UNSWITCHED OUTLETS, 1U, SEQ/SURGE SUPP

ACSPR-SEQ4-1509
POWER PANEL-15A, 6-SWITCHED 3-UNSWITCHED OUTLETS, 1U, SEQ/SURGE SUPP

The ACSPR Series with 9 outlets (1 front, 8 rear) features Advanced Multi-Stage Surge Suppression with TCR (Triple Clamping Redundant) technology to protect electronics against power surges and spikes up to 72,000A when operating at full capacity. LED status indicators serve to alert users if the unit is compromised and in need of repair/replacement. TCR technology includes a 10 year warranty.

Model ACSPR-SEQ4-1509:

• Unit Rating: This PDU has a 15A rating and includes a 9 ft. power cord with 15A plug (NEMA 5-15P).
• Outlets: All receptacles are 15A (NEMA 5-15R).
• Sequencer: Four-step sequencer. Some outlets are controlled by the front rocker activation switch, which begins the delayed start up or shut down of steps 1-4. See spec sheet for more information.
• Remote Circuitry: This PDU can be activated/deactivated by an external remote switch or alarm system connected to rear terminal blocks. Order external devices separately.
• Outlets (9 total):  1 front 15A (un-switched), 2 rear 15A (un-switched) , 6 rear 15A (switched)
• Power Rating:  120VAC, 60Hz, 15A
• Termination:  9 ft. attached cord with NEMA 5-15P plug
• Advanced surge protection to 72,000A.
• Four-step sequencer has a delay between steps that can be set between 0.5 and 10 seconds (screwdriver adjustable)
• Color coded LED status indicators
• Rear terminal block for connection to optional remote switches (momentary)
• Rear terminal block to allow system switches to be overridden for life safety system applications where fire code mandates an alarm interface.
• Chassis:  19 in. x 9 in. x 1.75 in. (1U)
• On/off Switch:  Rocker
