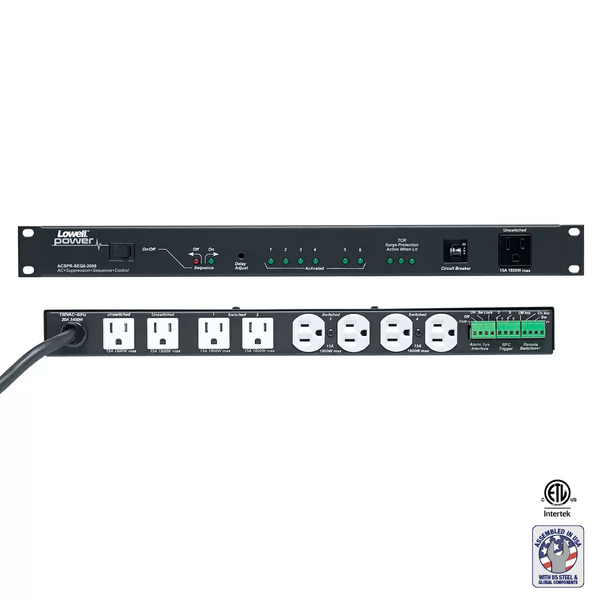

ACSPR-SEQ6-2009 | POWER PANEL-20A, 6-SWITCH 3-UNSWITCH OUTLETS, 1U, SEQ/SURGE SUPP, CORD

ACSPR-SEQ6-2009
POWER PANEL-20A, 6-SWITCH 3-UNSWITCH OUTLETS, 1U, SEQ/SURGE SUPP, CORD

The ACSPR Series with 9 outlets (1 front, 8 rear) features Advanced Multi-Stage Surge Protection with TCR (Triple Clamping Redundant) technology to protect electronics against power surges and spikes up to 72,000A when operating at full capacity. LED status indicators serve to alert users if the unit is compromised and in need of repair/replacement. TCR technology includes a 10 year warranty.

Model ACSPR-SEQ6-2009:

• Unit Rating: This PDU has a 20A rating and includes a 9 ft. power cord with 20A plug (NEMA 5-20P).
• Outlets: All receptacles are 15A (NEMA 5-15R).
• Sequencer: Four-step sequencer plus two additional remote steps. Some outlets are controlled by the front rocker switch, which begins the delayed start or shut down of steps 1-4, as well as any RPC devices connected to the rear remote terminal block (steps 5-6). See spec sheet for more information.
• Remote Circuitry: This unit can be activated/deactivated by an external remote switch or alarm system connected to rear terminal blocks. It can also connect to external RPC Series control devices to activate remote equipment. Order external devices separately.
• Power Rating:  120VAC 60Hz, 20A
• Outlets:  9 (15A) outlets—1 front (un-switched), 2 rear (un-switched), 6 rear (switched)
• Actuation Switch:  Front panel rocker switch with momentary contacts (normally open SPST) plus rear barrier strip termination blocks for momentary (normally open) remote switches.
• Four-step sequencer has a delay between steps that can be set between 0.5 and 10 seconds (screwdriver adjustable)
• Rear termination blocks accommodate remote switches, external triggers and an alarm system interface for use where mandated by fire code.
• Two dry contact closures (steps 5 and 6) trigger remote power control units (order separately).
• Alarm Interface:  Lock on, lock off and switch lock functions for alarm system or master control panel applications.
• Color coded LED status indicators
• Advanced surge protection to 72,000A
• Chassis:  19 in. x 9 in. x 1.75 in. (1U)
• Termination:  9 ft. attached cord with NEMA 5-20P plug
