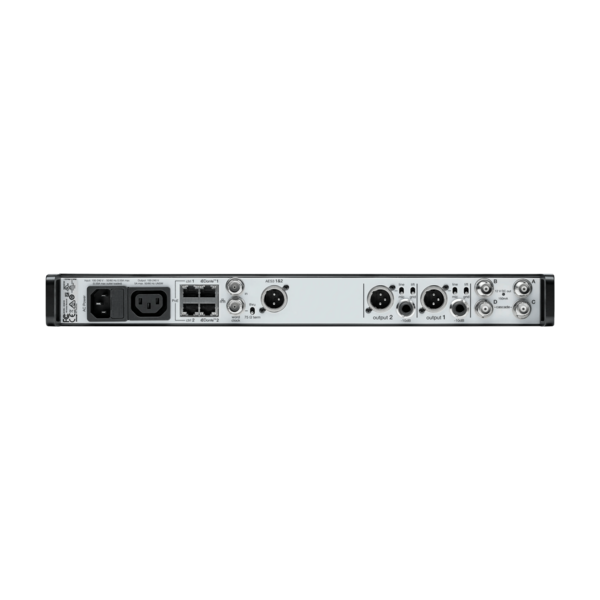

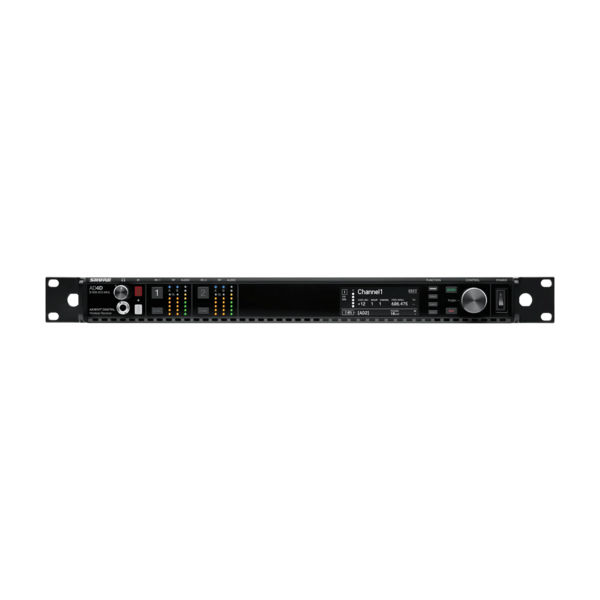

AD4DUS=-B | DUAL-CHANNEL RECEIVER. INCLUDES LOCKING POWER & JUMPER CABLES, BNC BULKHEAD ADAPTER, COAXIAL ANTENNA
AD4DUS=-B
DUAL-CHANNEL RECEIVER. INCLUDES LOCKING POWER & JUMPER CABLES, BNC BULKHEAD ADAPTER, COAXIAL ANTENNA
AD4DUS=-B
DUAL-CHANNEL RECEIVER. INCLUDES LOCKING POWER & JUMPER CABLES, BNC BULKHEAD ADAPTER, COAXIAL ANTENNA
- UM : EA
- Estimated Weight: 1.0
Axient Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to transparent digital audio.
The AD4D Two-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environments. Networked control and signal routing options bring a new level of management and flexibility to your entire workflow.
Features:
- Wide tuning range up to 184 MHz
- True digital diversity reception per channel for drop-out resistance
- Networked control with Wireless Workbench software and ShurePlus Channels iOS app
- Front panel headphone jack enables Dante Cue and Dante Browse monitoring
- Configurable Ethernet switch for redundant Dante or AES67 digital output
- AES3 output
- Channel Quality meter displays RF signal-to-noise
- Locking AC connectors
| Rf carrier frequency range | 606 - 810 MHz |
|---|---|
| Bias via bnc | yes |
| Encryption | yes, AES-256 |
| Frequency diversity | yes |
| Dante audio network interface | yes |
| Detachable antennas | yes |
| Network ability | DHCP, link-local, static |
| Software control | SystemOn, ShurePlus Channels, Wireless Workbench, Shure Update Utility |
| Antenna cascade | yes |
| Rack mount accessories | Integrated, Not needed |
| Receiver types | dual |
| Antenna type | External 1/2 wave |
| Line/mic switch | yes |
| Phantom power protection | yes |
