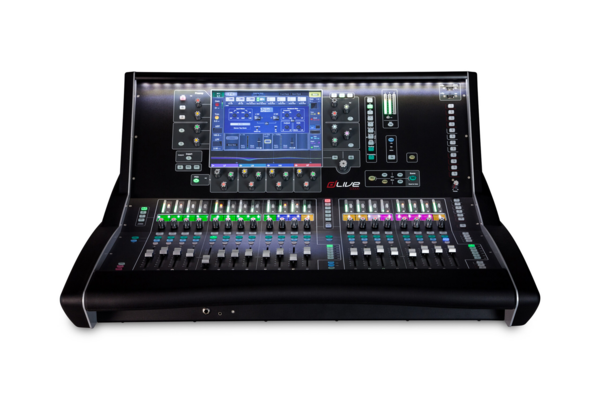

AH-DLIVE-S3 | DLIVE S CLASS S3000 20 FADER SURFACE, 12" TOUCHSCREEN, 2 OPTION I/O PORT, HOT SWAP PSU,
AH-DLIVE-S3
DLIVE S CLASS S3000 20 FADER SURFACE, 12" TOUCHSCREEN, 2 OPTION I/O PORT, HOT SWAP PSU,
AH-DLIVE-S3
DLIVE S CLASS S3000 20 FADER SURFACE, 12" TOUCHSCREEN, 2 OPTION I/O PORT, HOT SWAP PSU,
- UM : EA
With a fully customisable layout that allows you to build an interface that reflects your workflow and mixing style, dLive lets you focus on the mix, not the mixer.
Every input or mix can be assigned to any and every fader bank and/or layer, virtual scribble strips allow inputs and mixes to be clearly named and colour coded for at-a-glance navigation, and a wealth of assignable SoftKeys and 3 pages of 6 assignable rotaries per screen.
Bespoke ‘widget’ areas can also be set up on the touchscreens to keep track of scenes, meters, RTA, FX and other custom controls.
Features:
- 12″ Touchscreen
- 20 Faders
- 26 Assignable SoftKeys
- 6 Assignable Rotaries
- gigaACE link to MixRack (dual redundant)
- DX link for I/O expansion (dual redundant)
- 2 I/O Ports – 128ch 96kHz each
- 2 Network ports
- Wordclock BNC I/O
- Video output
- 8 Mic/line inputs
- 8 Line outputs
- 2 Digital st AES3 input
- 3 Digital st AES3 output
- Dedicated Preamp & Filter controls
- 26 Assignable SoftKeys
- Hot-swappable PSU (dual redundant option)
