AH-QU-6 | COMPACT 38IN/24OUT 96KHZ CONSOLE MIXER WITH 24 XLR/JACK MIC/LINE INPUTS, 16XLR OUTPUTS
AH-QU-6
COMPACT 38IN/24OUT 96KHZ CONSOLE MIXER WITH 24 XLR/JACK MIC/LINE INPUTS, 16XLR OUTPUTS
AH-QU-6
COMPACT 38IN/24OUT 96KHZ CONSOLE MIXER WITH 24 XLR/JACK MIC/LINE INPUTS, 16XLR OUTPUTS
- UM : EA

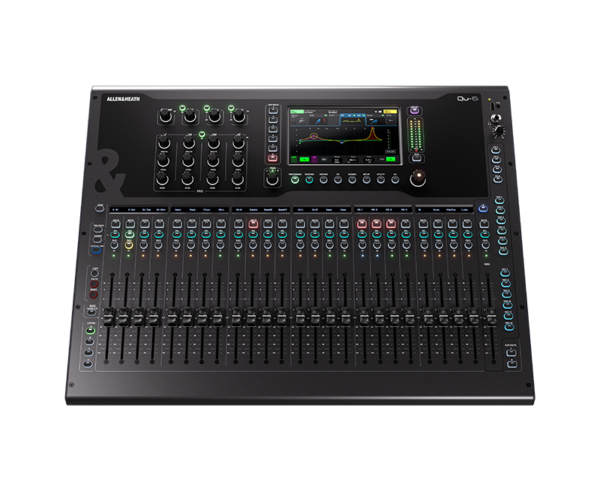

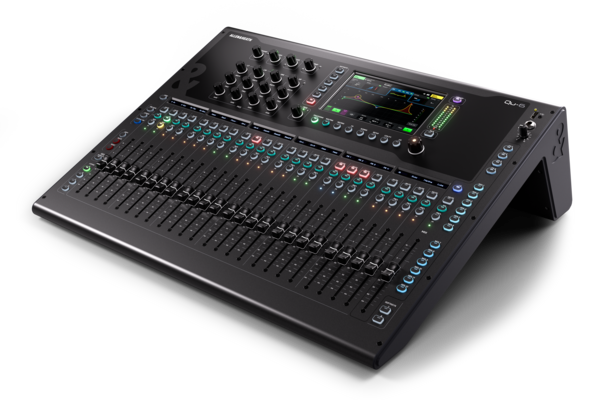

Qu-6 takes the ever-popular Qu-24 form factor and adds Allen & Heath’s powerful XCVI processing, new FX engines and Everything I/O connectivity. There’s also a larger capacitive touchscreen, channel strip displays, customisable layers and extra SoftKeys.
In addition, the Qu-6D variant features a built-in 16x16 48/96 kHz Dante port for interoperability with other Dante enabled equipment.
Both the Qu-6 and Qu-6D are 32 input channel, 96kHz digital audio mixers, combining high performance audio processing and professional features with ease of use and hands-on control.
The Qu-6 and Qu-6D are multi-purpose mixers suitable for live music/band use, AV and install, studio and broadcast. Workflow and UI have been designed to make operation easy for inexperienced users or volunteers, provide familiarity to those transitioning from analogue mixing and give quick access to more advanced features for the experienced engineer.
Features:
- 96kHz XCVI Core
- 6 Multi-FX Engines with dedicated Stereo Returns
- DEEP Processing Ready
- 38 Inputs to Mix (32x Mono/Linkable, 3x Stereo)
- 12 Mixes (6 Mono/Linkable Aux/Group, 6 Stereo Aux/Group)
- 4 Mono/Linkable Matrix
- Stereo Main LR Output

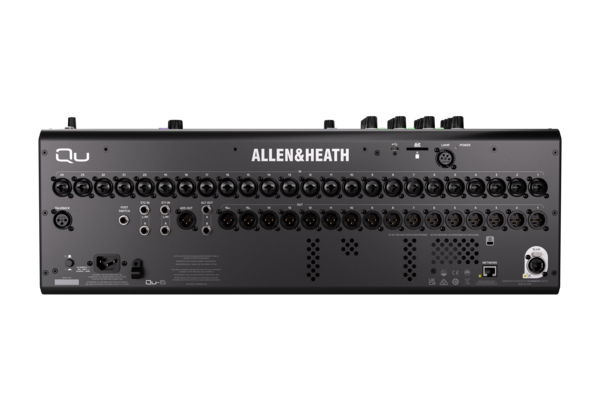

- 24 XLR/Jack ‘Combi’ Mic/Line Input Sockets
- 2 Stereo Line Input Sockets (each 2x TRS)
- 16 XLR Output Sockets
- 1 XLR Talkback Socket
- 2 TRS Output Sockets
- 1 AES3 Stereo Digital Output Socket
- 128×128 Intelligent SLink Port for Everything I/O expansion and system connections
- 16×16 48/96 kHz Dante interface with dedicated locking EtherCon port (Qu-6D only)
- Stereo Headphone Output
- 7” Capacitive Touchscreen
- 25 100mm Motorised Faders
- 4 Channel Strip Layers
- Remote control via free apps – Windows/MacOS/iOS/Android
- 8 SoftKeys
- Configurable single/dual Footswitch Connection
- USB-A For stereo audio record/playback and data transfer
- USB-C Audio interface for multichannel record/playback (32×32)
- SD Card Slot for multichannel audio recording or playback (16×16@96kHz, 32×32@48kHz)
- 12V Lamp Socket
- Configurable Chromatic Channel Meter LED’s
