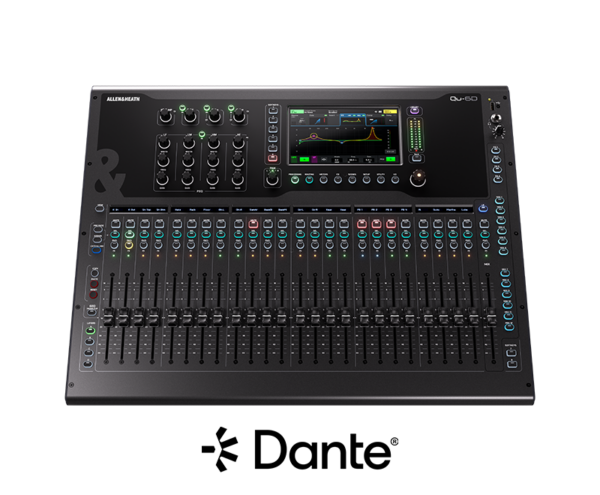

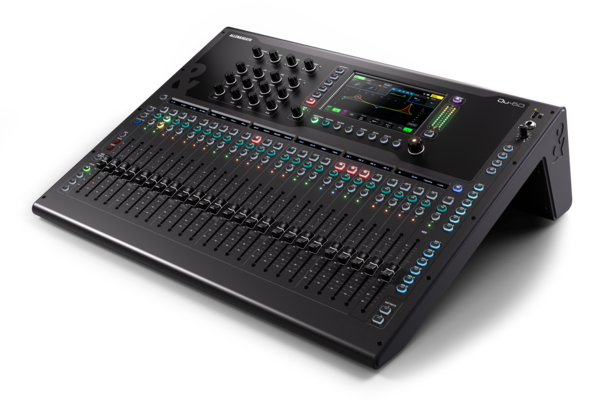

AH-QU-6D | COMPACT 38IN/24OUT 96KHZ MIXER WITH DANTE

The AH-QU-6D digital mixer features a 96 kHz XCVI processing core, enabling advanced audio processing capabilities. It supports an increased channel count with fully flexible patching across four customizable layers. The user interface has been redesigned for improved operational control.

Hardware components have been upgraded, and the mixer includes extended connectivity options in addition to Dante.

Features:

• 96kHz XCVI Core
• 6 Multi-FX Engines with dedicated Stereo Returns
• DEEP Processing Ready
• 38x Inputs to Mix (32x Mono/Linkable, 3x Stereo)
• 12 Mixes (6 Mono/Linkable Aux/Group, 6 Stereo Aux/Group)
• 4 Mono/Linkable Matrix
• Stereo Main LR Output

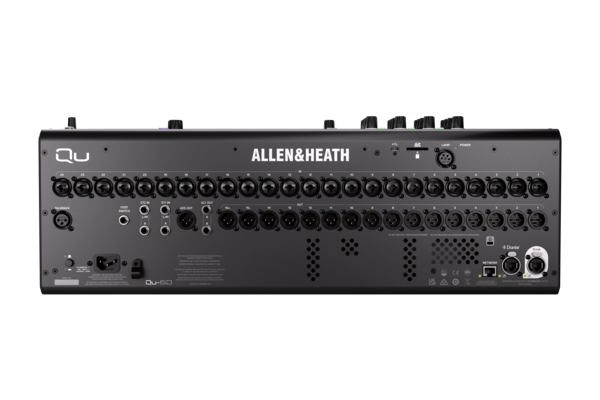

• 16 XLR/Jack ‘Combi’ Mic/Line Input Sockets
• 2 Stereo Line Input Sockets (each 2x TRS)
• 12 XLR Output Sockets
• 1 XLR Talkback Socket
• 2 TRS Output Sockets
• 1 AES3 Stereo Digital Output Socket
• 128×128 Intelligent SLink Port for Everything I/O expansion and system connections
• 16×16 48/96 kHz Dante interface with dedicated locking EtherCon port (Qu-5D only)
• Stereo Headphone Output
• 7” Capacitive Touchscreen
• 17 100mm Motorised Faders
• 4 Channel Strip Layers
• Remote control via free apps – Windows/MacOS/iOS/Android
• 8 SoftKeys
• Configurable single/dual Footswitch Connection
• USB-A For stereo audio record/playback and data transfer
• USB-C Audio interface for multichannel record/playback (32×32)
• SD Card Slot for multichannel audio recording or playback (16×16@96kHz, 32×32@48kHz)
• 19” Rack Mountable (optional kit available) (Qu-5 & Qu-5D only)
• 12V Lamp Socket
• Configurable Chromatic Channel Meter LED’s
