AH-SQ-7-PLUS | SQ7+ RACKULTRA FX ENABLED 48-CHANNEL DIGITAL MIXER WITH DEEP PROCESSING

AH-SQ-7-PLUS
SQ7+ RACKULTRA FX ENABLED 48-CHANNEL DIGITAL MIXER WITH DEEP PROCESSING

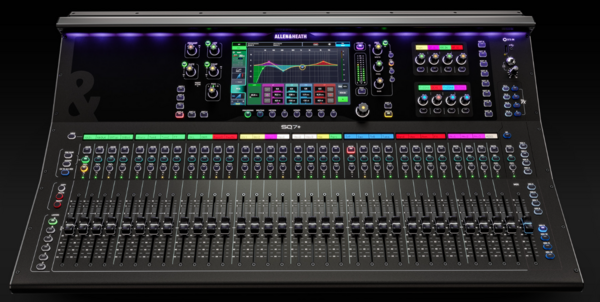

The SQ7+ is the largest mixer in the range, built for engineers who need the ultimate in hands-on control. 33 motorised faders, 16 assignable SoftKeys and 8 SoftRotaries put your entire show within reach, all backed by the same 96kHz XCVI core and 4 built-in RackUltra FX engines that power every SQ+ model.

SQ7+ Features:

Audio and Processing:

• 96kHz XCVI Core
• 48x Inputs to Mix
• 12x Stereo Aux/Group Mixes + LR
• 6x Mono/Linkable Matrix
• Full Channel and Mix processing (HPF, PEQ/GEQ, Comp, Gate)
• DEEP Processing ready
• 8x Rack Extra FX Engines with dedicated send and return channels
• 4x RackUltra FX Engines with dedicated send and return channels

Digital I/O:

• 128×128 Intelligent SLink Port for Everything I/O expansion and connection to other A&H consoles
• 1x I/O Port for option cards (SLink, Dante, Waves and MADI cards available)
• 1x AES3 Stereo Digital Output Socket

USB Recording & Playback

• USB A: 16 Channels @ 96kHz
• USB A: 32 Channels @ 48kHz
• USB B Interface: 32×32 @ 96kHz
• USB B Interface: 32×32 @ 48kHz

Analogue I/O:

• 32x XLR Mic/Line Input Sockets
• 16x XLR Output Sockets
• 3x Stereo Line Input Sockets (4x TRS ¼” sockets, 1x 3.5mm TRS socket)
• 1x XLR Talkback Socket
• 2x TRS Output Sockets
• Stereo Headphone Output

Control:

• 33x 100mm Motorised Faders
• 16x SoftKeys
• 8x SoftRotaries
• 6x Channel Strip Layers
• 9” Touchscreen with dark GUI
• Configurable single/dual Footswitch Connection
• Remote control via free apps – Windows/MacOS/iOS/Android
