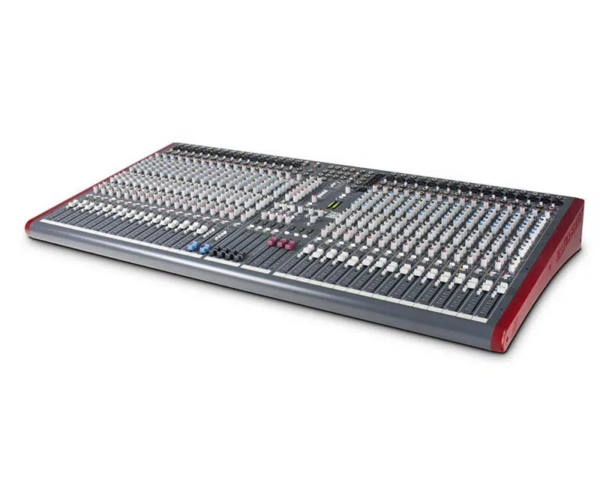

AH-ZED436 | "4-BUSS MIXER 32 MIC/LINE + 2 DUAL STEREO CH., 4 BAND DUAL SWEPT MID EQ, 6 AUX SENDS,"

AH-ZED436
"4-BUSS MIXER 32 MIC/LINE + 2 DUAL STEREO CH., 4 BAND DUAL SWEPT MID EQ, 6 AUX SENDS,"

ZED-436 is excellent for bands, houses of worship, theatres or AV applications. It has a truly professional feature set, which will fit any sound reinforcement application and professional PA hire stock. ZED-436 has Configurable USB audio in/out makes it easy to capture stereo recordings, 32 mic or line inputs plus 2 dual stereo inputs, 4-band EQ with MusiQ, 4 sub-groups, 6 auxiliary sends and a 7×2 matrix.

FEATURES

• - 32 mono channels
• - 2 dual stereo inputs with 4-band EQ
• - Neutrik mic XLR
• - Neutrik 1/4 inch jacks
• - Channel insert
• - Super wide gain ‘DuoPre’ mic line input
• - 4-band EQ with 2 swept mids and in/out switch
• - Illuminated mute
• - Sound image pan
• - Illuminated PFL & peak warning indicator
• - ALPS 100mm faders
• - 6 auxiliary sends (2 pre, 2 post, 2 pre/post)
• - 4 sub groups fed from each channel
• - All inputs with level control
• - 12 bar meters
• - L, R and M main mix outputs
• - 2 matrix sections available; can send output to USB
• - Individual channel 48V phantom power
• - Direct output on every mono channel
• - Peak and signal indication on every channel
• - Configurable USB stereo audio in/out
• - Master level controls on all outputs
• - Easy to use layout – all connections and controls on top surface
