AL7115
HIGH POWER 1 X 15" LOW FREQUENCY LOUDSPEAKER. 1 X 15" 2265H DIFFERENTIAL DRIVE WOOFER.

  • UM : EA
  • Estimated Weight: 57.0

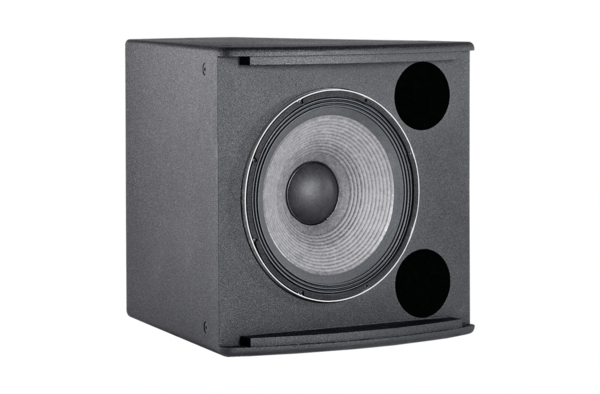

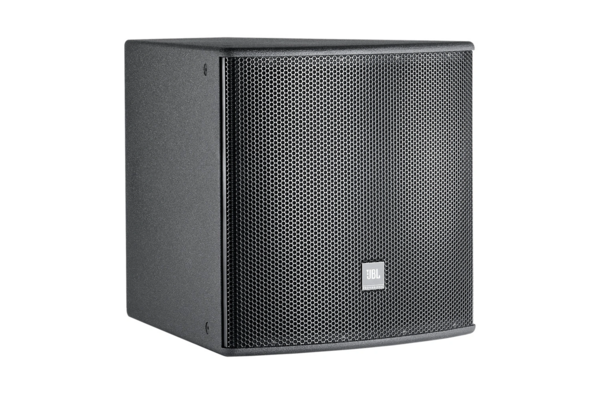

AL7115 is a low-frequency loudspeaker system featuring a single 380 mm (15 in) Differential Drive low-frequency driver. The driver is housed in a front-loaded, vented, trapezoidal cabinet equipped with M10 threaded suspension points. Pre-engineered array bracketry is available for this model.

Features:

  • 15" 2265H Differential Drive Low-Frequency Driver
  • Large vent area for high output with low distortion
  • Compatible with AE Series mid-high frequency and compact 2-way models
Frequency Range 40 Hz – 4.2 kHz
Frequency Response 47 Hz - 3.0 kHz
Transducer Power Rating (AES) 1000 W (4000 W peak), 2 hrs
System Power Rating 600 W (2400 W peak), 100 hrs
Maximum SPL (1m) 127 dB-SPL cont avg (133 dB peak) 50 Hz–125 Hz, 126 dB-SPL cont avg (132 dB peak) 125 Hz–800 Hz
System Sensitivity (1w @ 1m) 97 dB 50 Hz–800 Hz
Nominal Impedance 8ohms
LF Driver 1 x JBL 2265H 15 in Differential Drive driver with 3 in dual voice coil
Enclosure Trapezoidal, 16 mm exterior grade 11-ply Finnish birch plywood
Suspension Attachment 13 points, M10 threaded hardware
baffle Powder coated 14 gauge perforated steel with black foam backing

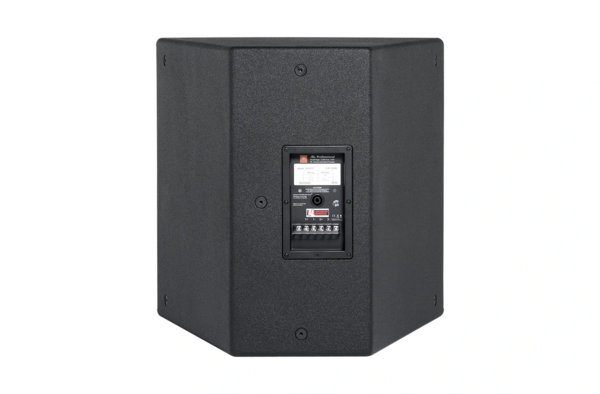

Input Connector NL4 Neutrik Speakon and CE-compliant barrier strip terminals, accepts up to 5.2 sq mm wire or 9 mm spade lugs
Environmental Mil-Std 810; IP-x3 per IEC529
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers, planar array frame kit
Nominal LF Driver Impedance 8ohms
