AL7115-WRC
WITH WEATHER PROTECTION TREATMENT. REFER TO WEATHER RESISTANT CONFIGURATIONS FOR AE,

  • UM : EA
  • Estimated Weight: 85.0

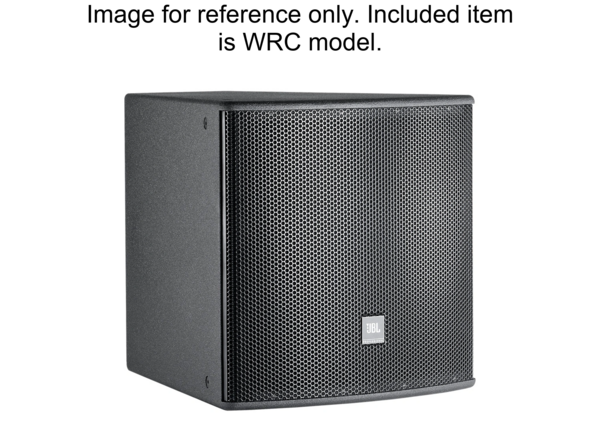

AL7115-WRC is a low frequency loudspeaker system featuring a single 380 mm (15 in) Differential Drive low frequency driver. The driver is mounted in a front-loaded, vented enclosure with a trapezoidal shape. The cabinet includes M10 threaded suspension points for rigging. Compatible pre-engineered array brackets are available. This model is part of the JBL AE Application Engineered Series.

Features:

  • 15" 2265H Differential Drive Low-Frequency Driver
  • Large vent area for high output with low distortion
  • Compatible with AE Series mid-high frequency and 2-way models
Frequency Range 40 Hz – 4.2 kHz
Frequency Response 47 Hz - 3.0 kHz
Transducer Power Rating (AES) 1000 W (4000 W peak), 2 hrs
System Power Rating 600 W (2400 W peak), 100 hrs
Maximum SPL (1m) 127 dB-SPL cont avg (133 dB peak) 50 Hz –125 Hz, 126 dB-SPL cont avg (132 dB peak) 125 Hz – 800 Hz
System Sensitivity (1w @ 1m) 97 dB 50 Hz – 125 Hz, 97 dB 125 Hz – 800 Hz
Nominal Impedance 8ohms
LF Driver 1 x JBL 2265H 15 in Differential Drive with 3 in dual voice coil
Suspension Attachment 13 points, M10 threaded hardware
baffle Powder coated 14 gauge perforated steel with acoustically transparent black foam backing
Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals, accept up to 5.2 sq mm wire or max 9 mm spade lugs, Speakon in parallel for loop-through
Environmental Mil-Std 810; IP-x3 per IEC529
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers, optional planar array frame kit
