OMNI-DIRECTIONAL BOUNDARY MIC, HALF-SPHERICAL POLAR PATTERN, BLACK
Click image to enlarge

ALF-BM10-B
OMNI-DIRECTIONAL BOUNDARY MIC, HALF-SPHERICAL POLAR PATTERN, BLACK

  • UM : EA

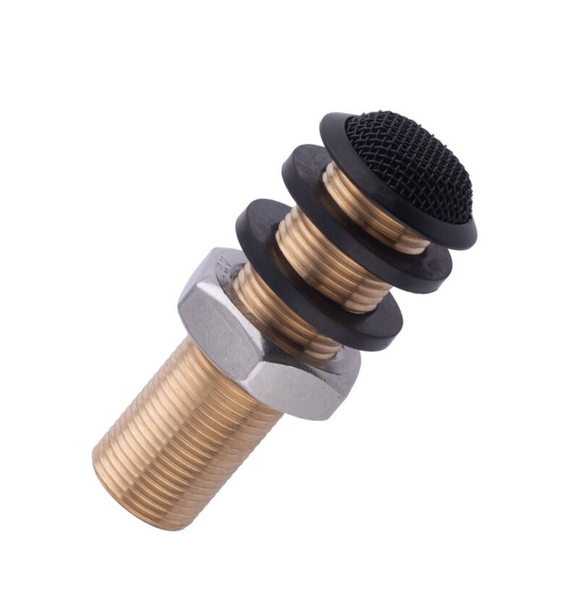

The ALF-BM10 omni directional (Half-Spherical polar pattern) boundary microphone, small design, especially suitable for installation on inconspicuous desktop, ceiling and instrument panel

Polar pattern Half-spherical
Frequency Response 50Hz – 20kHz
Open circuit voltage at 1 kHz (0 dB = 1 V/Pa) 12.8 mV/Pa = -38dBV
Nominal impedance 200 Ω
Load impedance ≥2 kΩ
Signal to noise ratio 68dB [A]
Max. sound pressure level 117 dB [SPL @ 1% THD]
Equivalent SPL 26 dB [A]
Phantom supply 9-52V
Current consumption 3.0 mA
Connection 3-pin XLR.
Color Black
